The most cost-effective adjustable deck pedestal to specify, estimate and install in the height range 3/4″ to 16 1/2″.
The innovative design of Archatrak Premier adjustable deck pedestals dramatically speeds up rooftop deck installation by minimizing the number of pedestal models and components needed. While other adjustable deck pedestals often require 6 or more pedestals and numerous components to reach heights above 16”, this streamlined solution using concentric screwed columns covers an impressive range from 3/4 of an inch to 16 1/2 inches with just four basic pedestal units. An integrated self-leveling head automatically compensates for substrate slopes up to 5%, further simplifying installation and reducing the need for additional slope-correction components.
This unique design dramatically eliminates the headaches of estimating pedestal heights pre-installation, dealing with unexpected height variations on the actual site, ordering overnight deliveries to replace incorrect size pedestals, and the hassle and expense of dealing with returns of unwanted pedestals.
Download DatasheetBenefits of Archatrak PrEMIER Adjustable height pedestal Supports

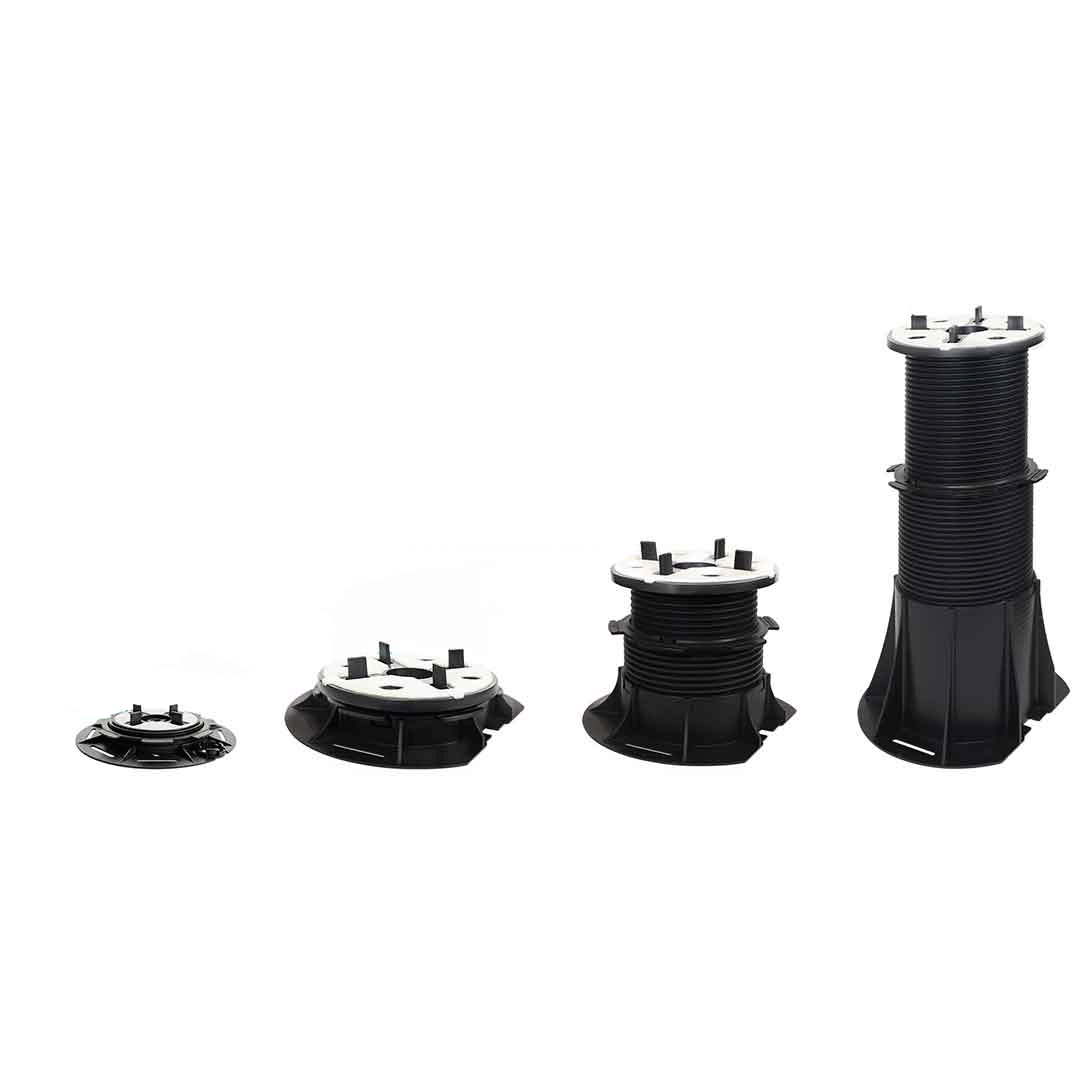

Just 4 Pedestals Extend to 16 ½”
Only four pedestal supports cover heights from 3/4″ to 16 1/2″
Single Piece Clip-On Head
Bi-material head provides superior sound deadening and shock protection.
Automatic Self Leveling Heads
Wide 5 7/8″ dia. self-leveling heads offer automatic slope compensation up to 5%.
Easy Micro Height Adjustments
Screwed columns offer continuous incremental height adjustment.
Wide, Flat, Load Bearing Base
Large, 46 sq.in. circular base distributes load and avoids membrane damage.
Top Down Height Adjustment
Top entry tool enables post installation height adjustments and leveling.
Components
Premier Series Pedestals
Each polypropylene pedestal is pre-assembled with base and concentric screwed columns. The self-leveling head is supplied complete with inbuilt spacer tabs and a soft rubber surface to reduce noise transmission.
Sizes and Models

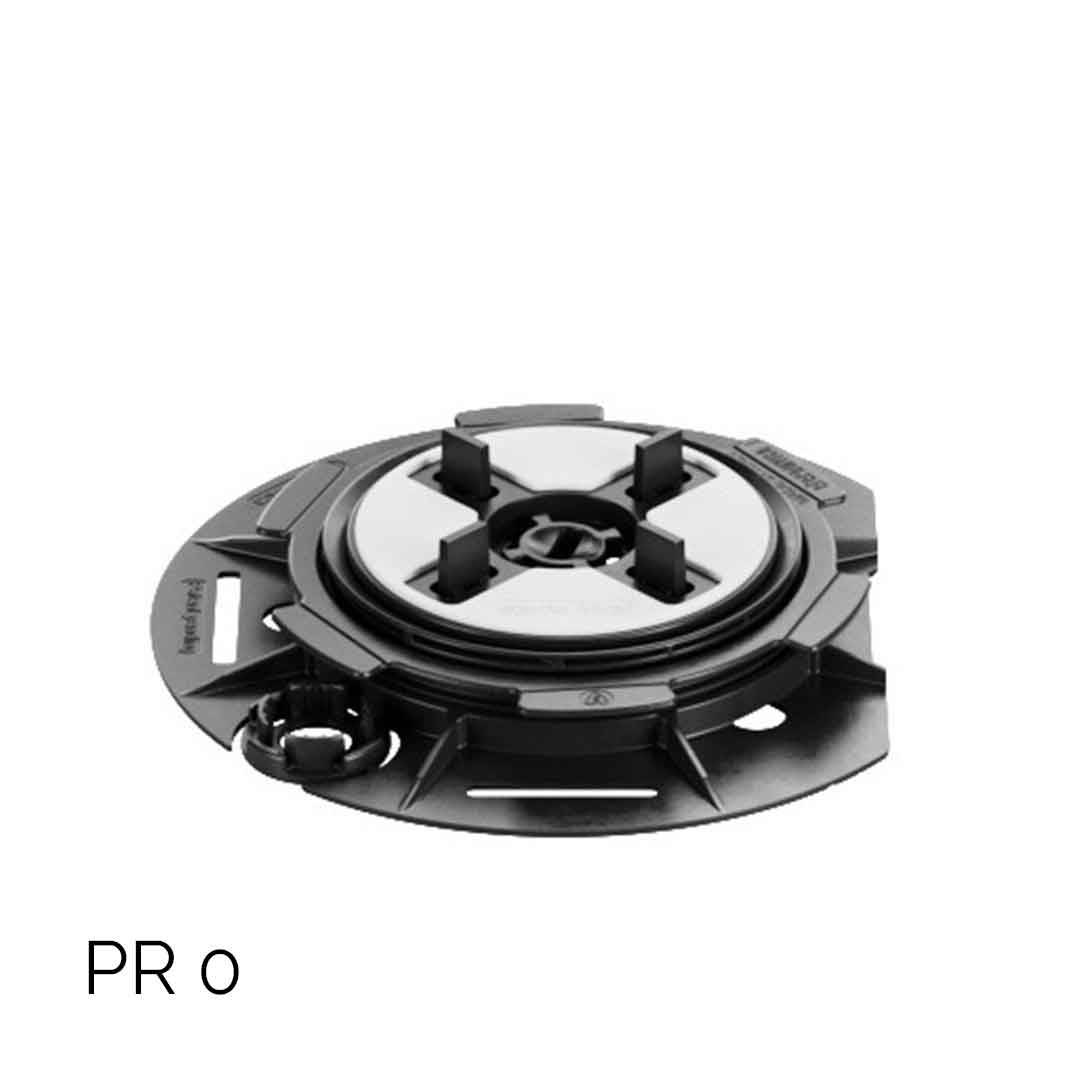

PR0 – 3/4” to 1 3/8” – provides low-profile adjustability with 2.5% slope compensation for consistent, level installations.

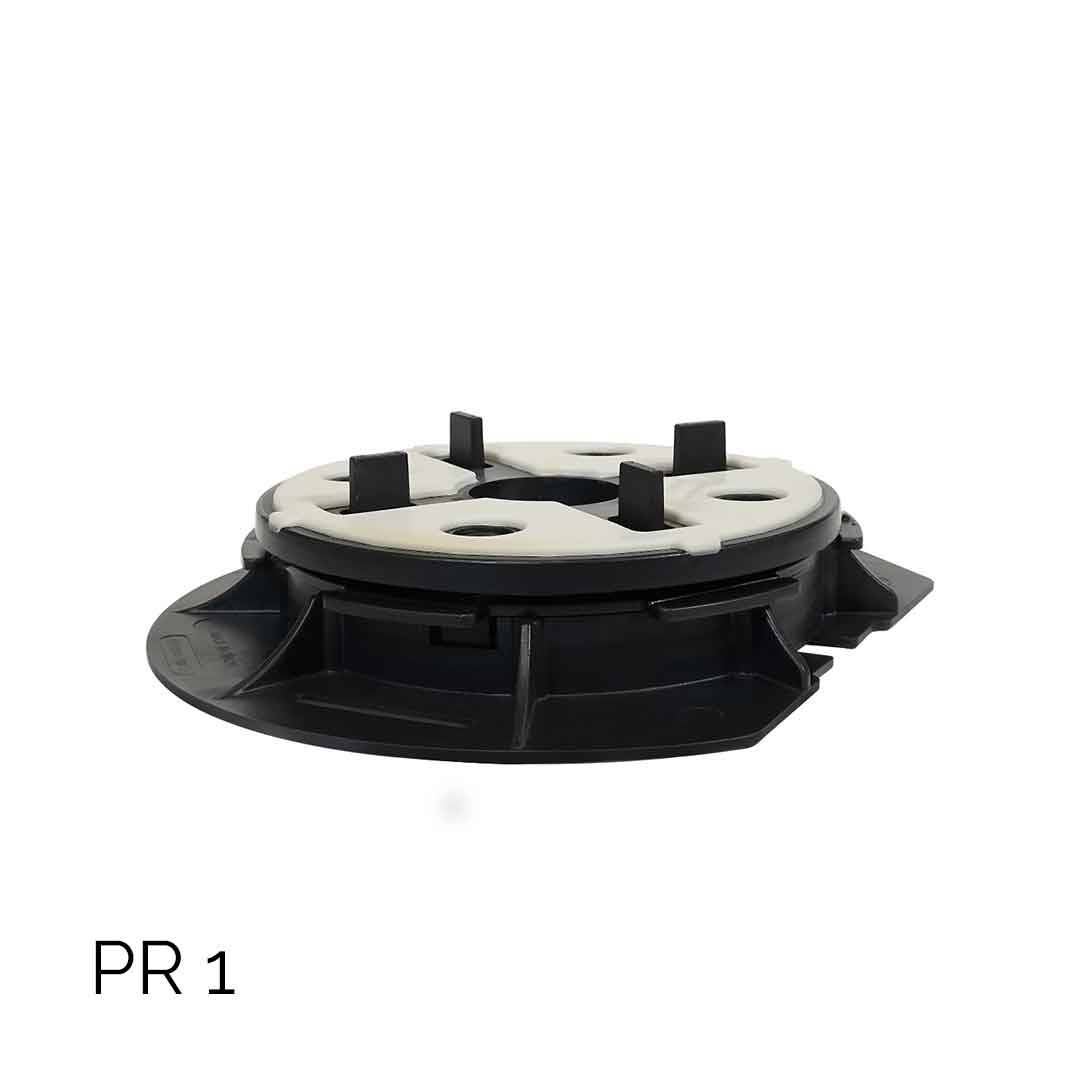

PR1 – 1 3/8″ to 2 5/8” – addresses the crucial ground-level transition zone beyond the range of fixed height rubber pads. where typically two sizes of adjustable deck pedestals would be required.

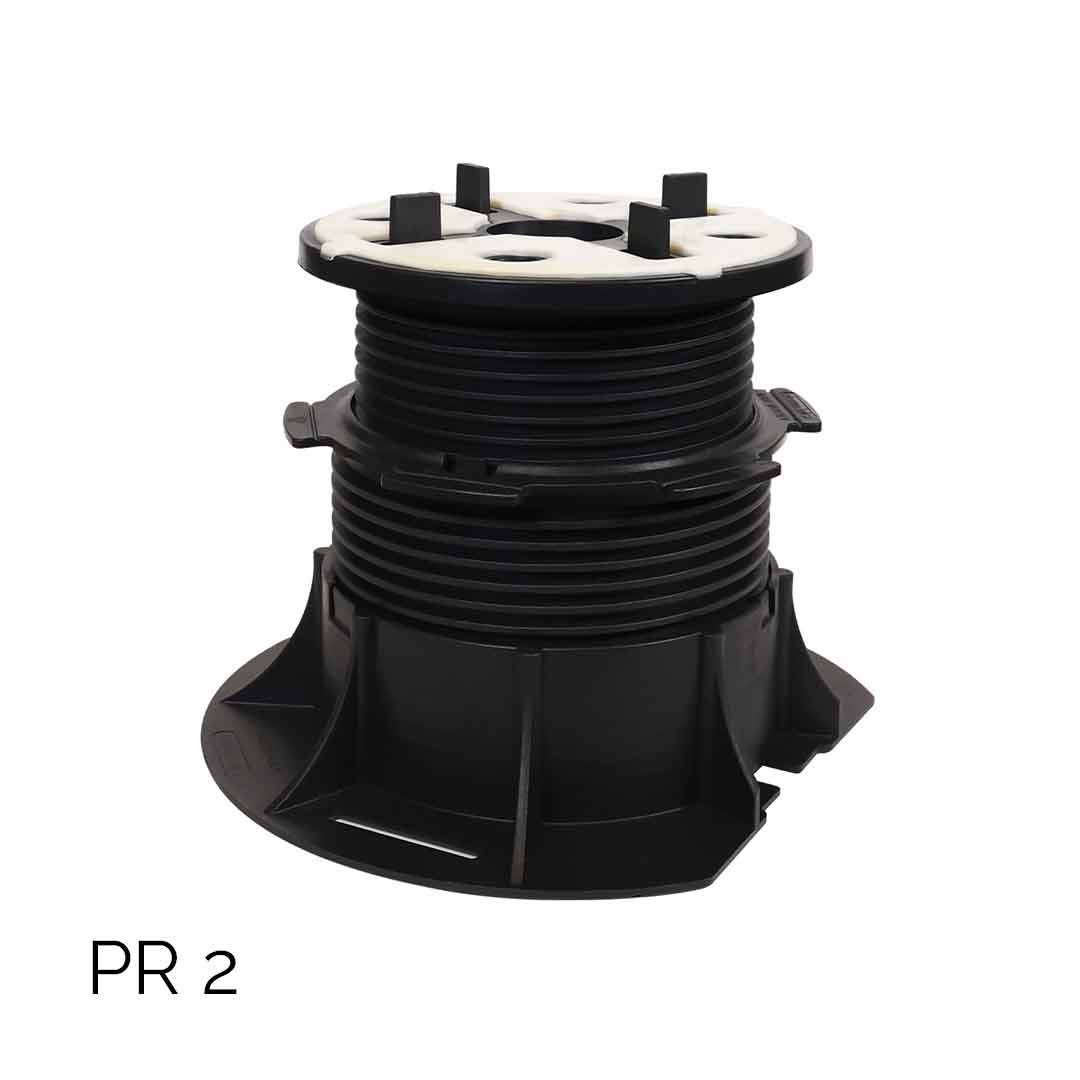

PR2 – 2 5/8″ to 6 1/4″ – covers the most common height in elevated deck installations with just a single size pedestal, where typically 2 or 3 sizes of adjustable deck pedestals would be required.

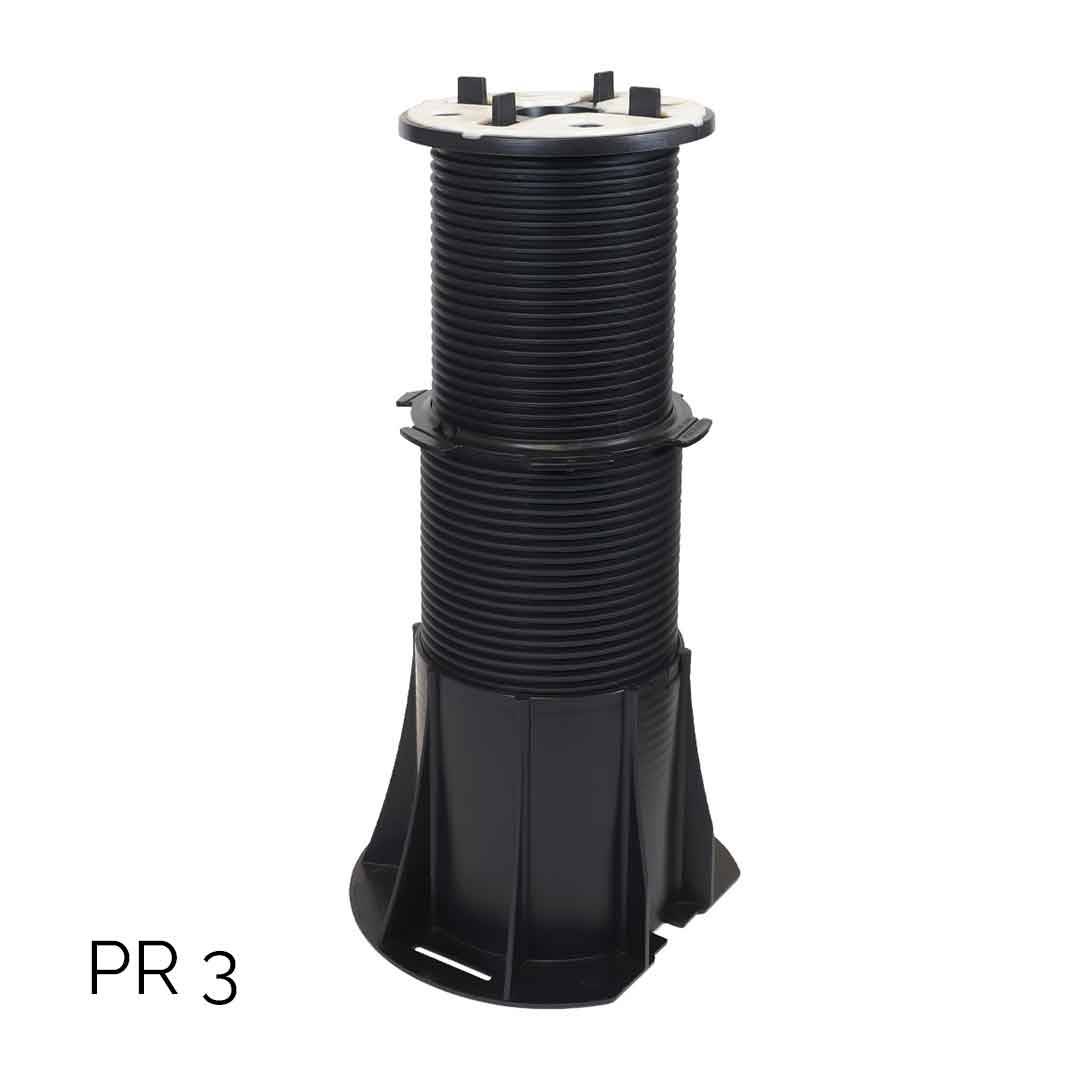

PR3 – 6 1/4″ to 16 1/2″– this single pedestal covers a range of more than 10″ where a minimum of 3 sizes of pedestals are normally required.
Accessories
Head Lock
An optional head lock is available to easily convert the self leveling head to a fixed head
PR Extension
Multiple extension elements can be added to the PR3 pedestals to achieve higher elevations up to 37”.

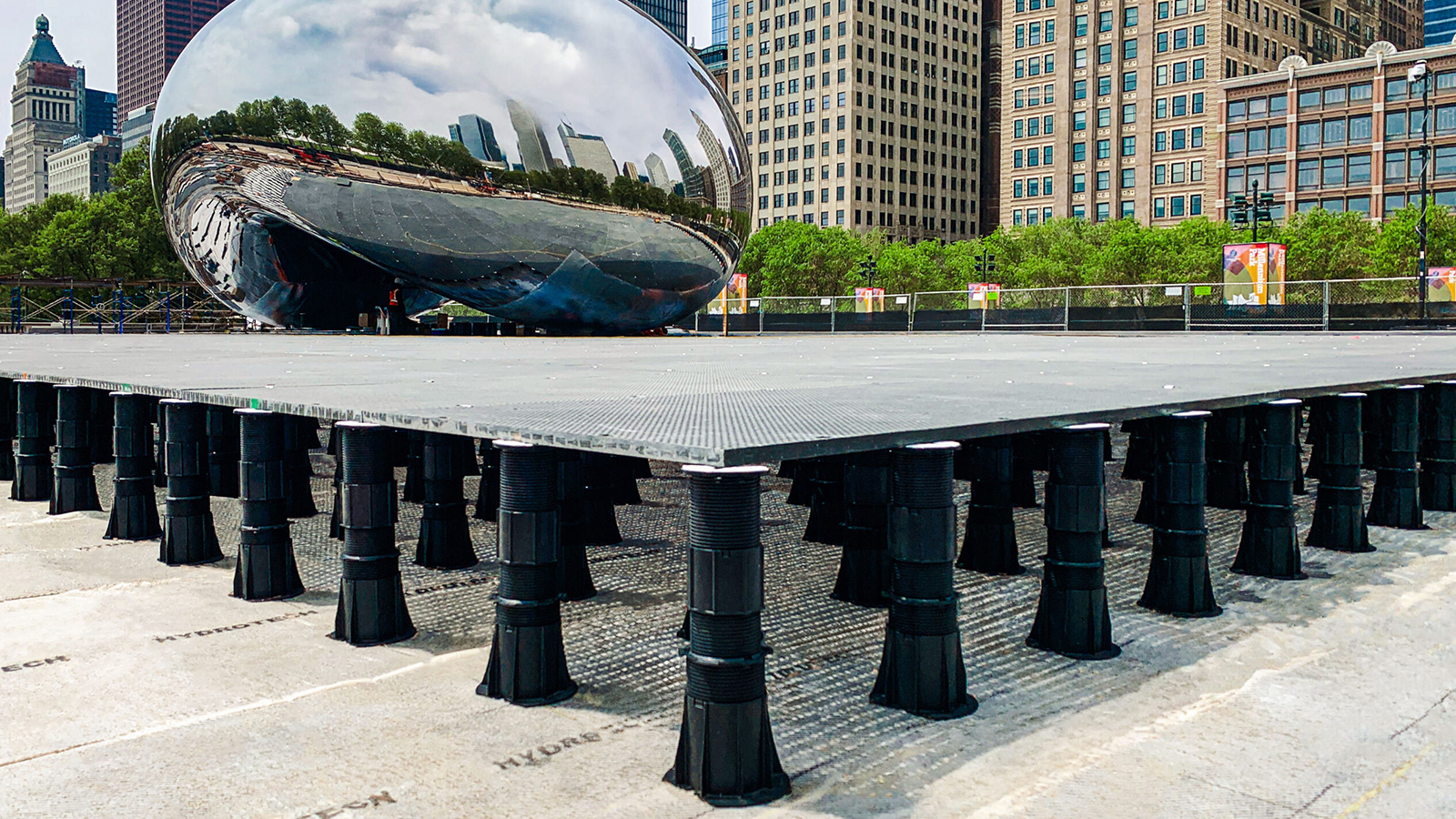

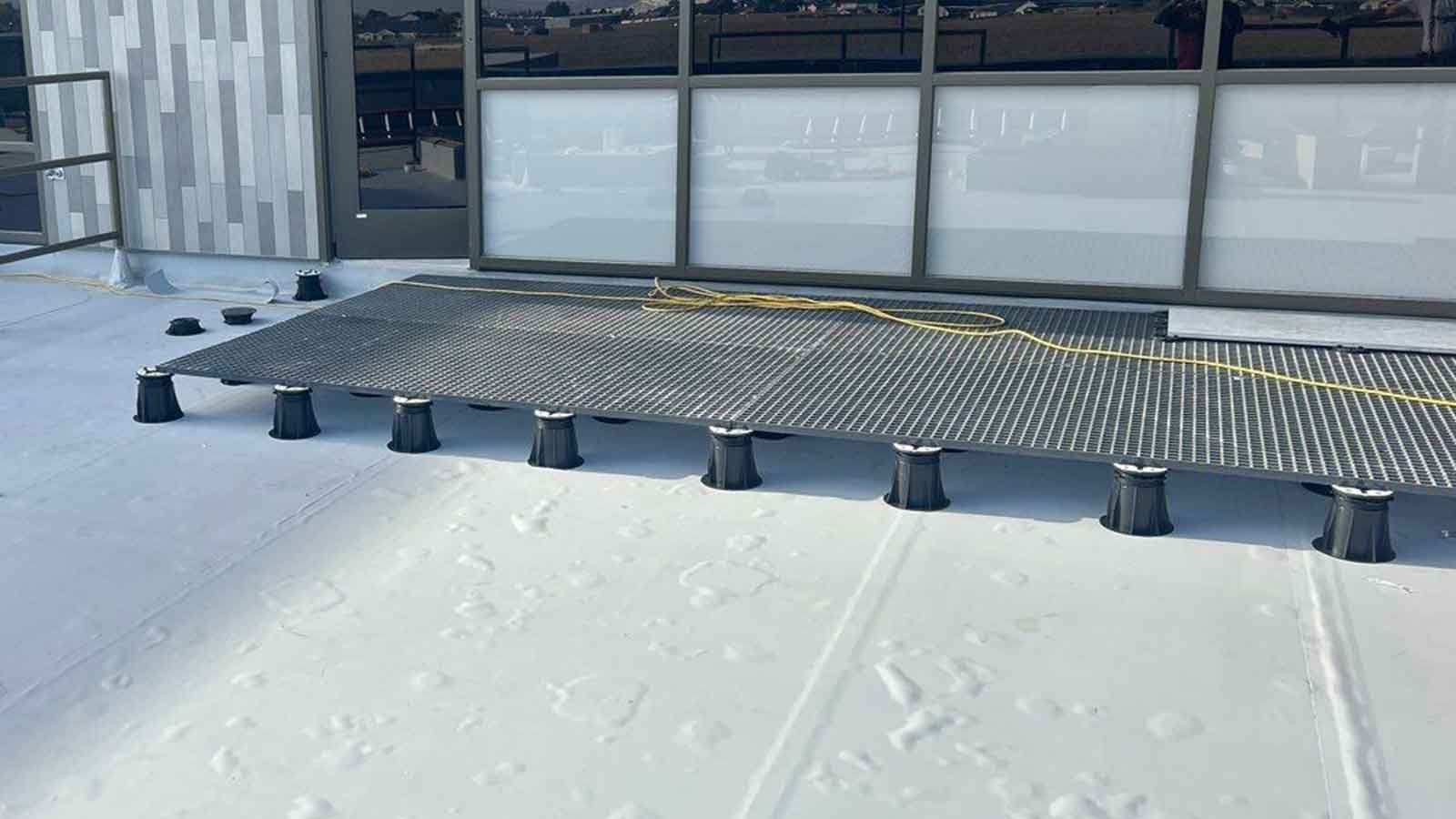

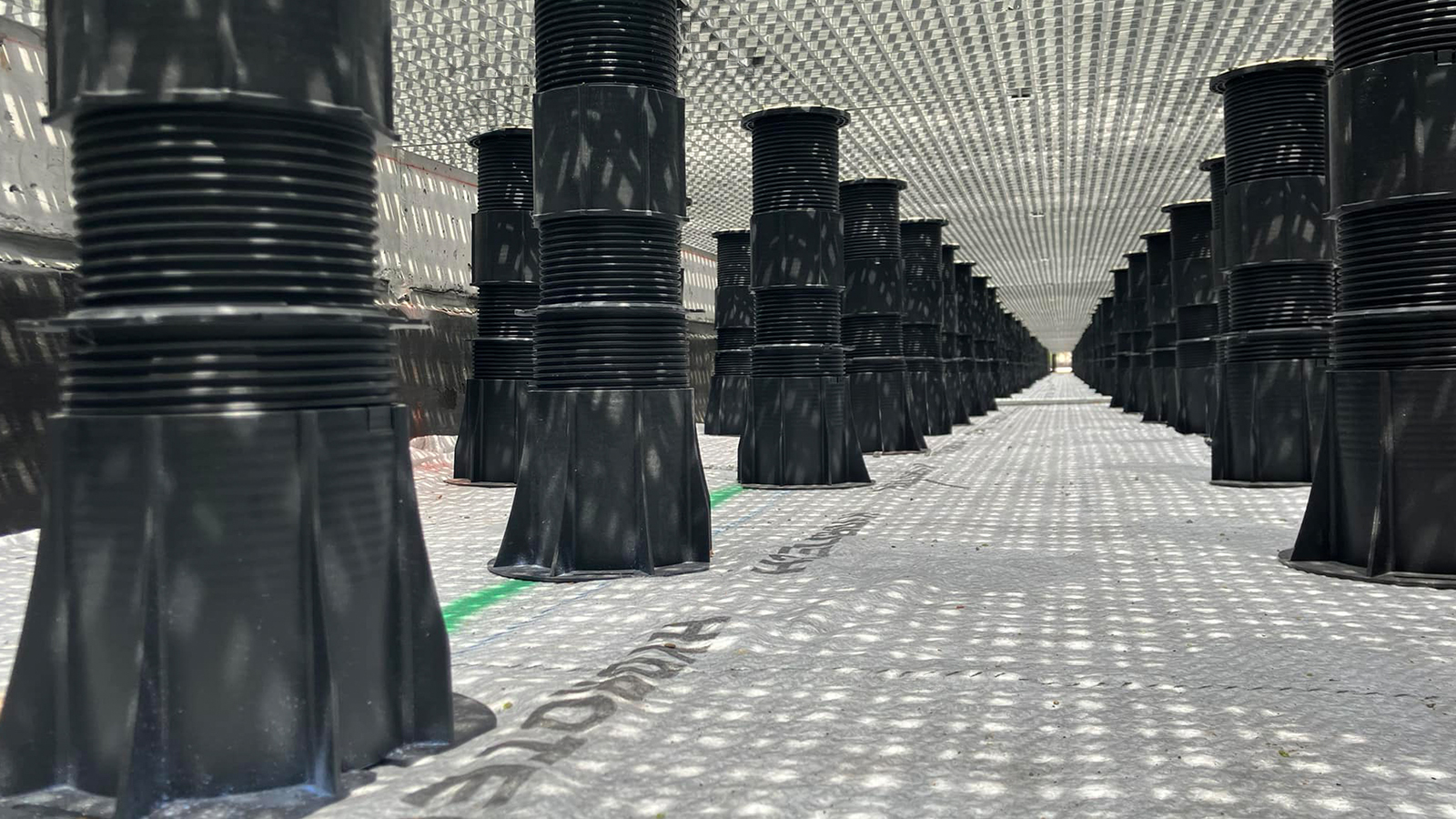

Premier Elevated Decking Examples
Technical Specs
Continuously adjustable from 3/4″ to 16 1/2″ with just four models.
Height Range
PR0 range
3/4” – 1 3/8”
PR1 range
1 3/8″ – 2 5/8″
PR2 range
2 5/8″ – 6 1/4″
PR3 range
6 1/4″ – 16 1/2″
Extension elements 7 1/2” tall can be added to the PR3 pedestals to achieve higher elevations.
One extension
12 3/8″ – 23 3/8″
Two extensions
16 3/8″ – 30 1/4″
Three extensions
20 1/2″ – 37 1/4″
Material – base and screwed columns
Polypropylene
Material – head and inbuilt spacer tabs
Polypropylene with bonded rubber surface
Spacer tabs
½” high x 5/32” thick (std.)
Base
8 ¼” dia. 50 sq.in.
Head
5 ⅞” dia. Self leveling with 5% max compensation
Compressive Load
PR1 5058 lb., PR2 5283 lb., PR3 4496 lb.
Weight
PR1 0.7 lb., PR2 1.14 lb., PR3 2.1 lb.
Installation Guide
Installation guides for building elevated roof decks with a roof paver pedestal system using porcelain, wood or concrete pavers laid over Archatrak adjustable deck pedestal supports, can be seen at the page link below together with a short video illustrating the various stages of installation.
Installation Guide
Warranty
Archatrak warrants that adjustable paver supports sold by us under the brand name Premier will remain free from defects for a period of three (3) years from date of purchase.
Download full warranty
Request a Pricing Quote
Our team uses advanced estimating tools to produce fast, accurate paver, pedestal, and FRP quotes, often the same day as the request.
Request Pedestal Samples
Order free samples to evaluate porcelain paver finishes, textures, and colors in person before making your final selection.
Paver Support Comparison
Premier Pedestals
NM Pedestals
Incendio Steel Pedestals
Stackable Rubber Pads
Load capacity
> 4500 lb.
> 3600 lb
> 12,700 lb.
n/a
Models required in 1”-16” range
3
5 + extender
7
n/a
Height range without extenders
3/4” – 16 ½”
1” – 10 ⅝”
1” – 19 ¼”
1 ½” max.
Extenders available
Material of construction
Polyethylene
Polyethylene
Mild steel
Rubber
Self-leveling heads
Inbuilt spacer tabs on heads
Bonded rubber faced heads
Non-combustible
Top down height adjustment
Height adjustment method
Concentric screwed columns
Single screwed column
Single screwed column
Stacked pads & shims
Distinguishing Features of Premier Adjustable Deck Pedestals
The heavy duty Premier pedestal system can be used with concrete pavers, porcelain pavers and structural Ipe wood tiles, making it an ideal solution for architects, contractors, and property owners seeking an exceptionally efficient and time saving elevated pedestal paving deck support system with high load bearing capacity for rooftop deck or balcony installations.
For projects demanding greater heights, the PR3 model serves as the foundation for elevations beyond 16 ½” via add-in extension elements. A single extension increases working height to 24″, two extensions reach 30″, and three extensions extend to 37″, accommodating practically all elevated roof deck requirements.
Premier adjustable deck pedestals incorporate self-leveling heads as standard, eliminating the extra labor and cost of tools to measure slopes and add slope correction components either at the base or on the head of each pedestal.
Premier self-leveling pedestals automatically adjust for slope up to 5°, ensuring a perfectly level support for pavers even where the substrate may slope in multiple directions.
Need a fixed head rather than self-leveling? A simple add-in headlock component provides a quick and easy option to switch from a self-leveling pedestal to a fixed head pedestal for situations requiring extra rigidity.
Inbuilt rubber-faced pedestal heads on Prime adjustable deck pedestals provide acoustic dampening and enhanced slip resistance without the need for any add-in shims.
Integrated spacer tabs on the single component heads eliminate the need for extra components and are designed to be easily snapped off without the need for a knife when not required.
5 7/8″ diameter heads with their slip resistant rubber surface provide excellent support and stability for all types of pavers – porcelain, concrete, wood.
Scored cut lines on the base ensure installation of the pedestals in corners and along perimeter can proceed rapidly.
Minor height adjustments to a completed deck can be easily made at any time after installation by inserting a special tool into a slot in the pedestal head, eliminating the need to lift pavers.
A safety lock prevents columns from being screwed beyond their designed working height.
