Porcelain pavers with integrated spacer nibs on all four sides provide a precise and efficient solution for permeable driveway and parking applications.
The built-in nibs maintain consistent joint spacing, ensuring reliable water infiltration while reducing installation time and layout adjustments.
Archatrak permeable porcelain pavers are available in both 3cm and 5cm thicknesses to accommodate varying load requirements. The 5cm pavers deliver approximately 2½ times the breaking strength of 3cm units and are recommended for heavier-duty vehicular applications where additional structural capacity is required.
Key considerations for permeable porcelain installations:
- Controlled joint spacing for consistent drainage: Integrated spacer nibs maintain uniform joint widths, supporting predictable water flow into the underlying open-graded aggregate base.
- Thickness selection based on traffic demands: 3cm permeable pavers are suitable for standard vehicular applications, while 5cm pavers provide enhanced strength for higher-load or more demanding conditions.
- Modular format flexibility: Available in 8″ x 8″, 4″ x 8″, and 4″ x 4″ sizes, permeable pavers can be combined in mixed patterns to create varied layouts while maintaining consistent drainage performance.

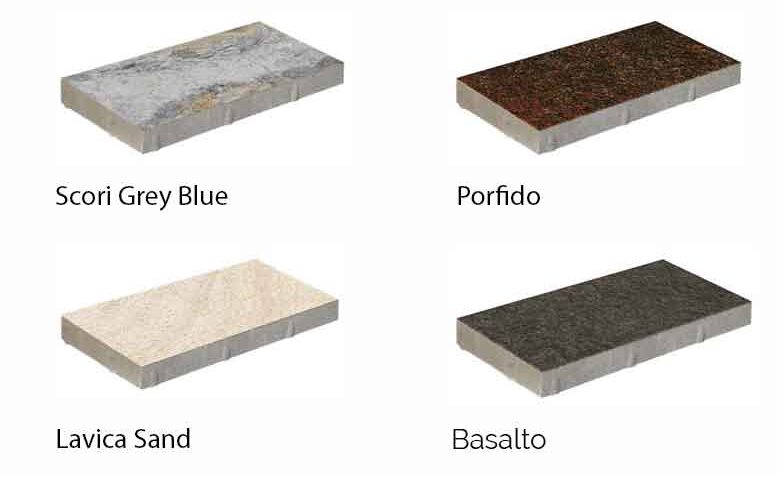

3cm Permeable Porcelain Pavers
3cm porcelain pavers provide a balanced solution for vehicular paving where structural performance and refined surface aesthetics are equally important. Available in five colors, these pavers install with consistent joint spacing and clean alignment while retaining the inherent benefits of porcelain, including low water absorption, resistance to oil and staining, freeze-thaw durability, and long-term color stability.
Contact an Archatrak representative to learn more

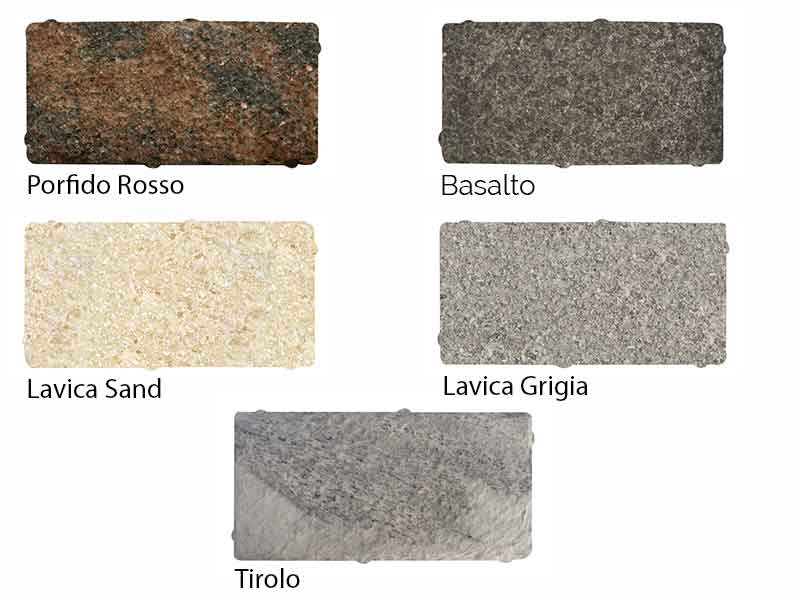

5cm Permeable Porcelain Pavers
5cm permeable porcelain pavers deliver enhanced structural capacity for more demanding vehicular conditions, combining substantial mass with durable surface performance over compacted aggregate bases. Offered in six colors, this thickness supports efficient dry-lay installation with controlled spacing while preserving the core advantages of porcelain such as stain resistance, minimal maintenance, UV stability, and resistance to freeze-thaw cycling.
Contact an Archatrak representative to learn more.
Permeable porcelain pavers are paving units designed to allow rainwater to pass through the joints between the pavers and into a specially prepared aggregate base below.

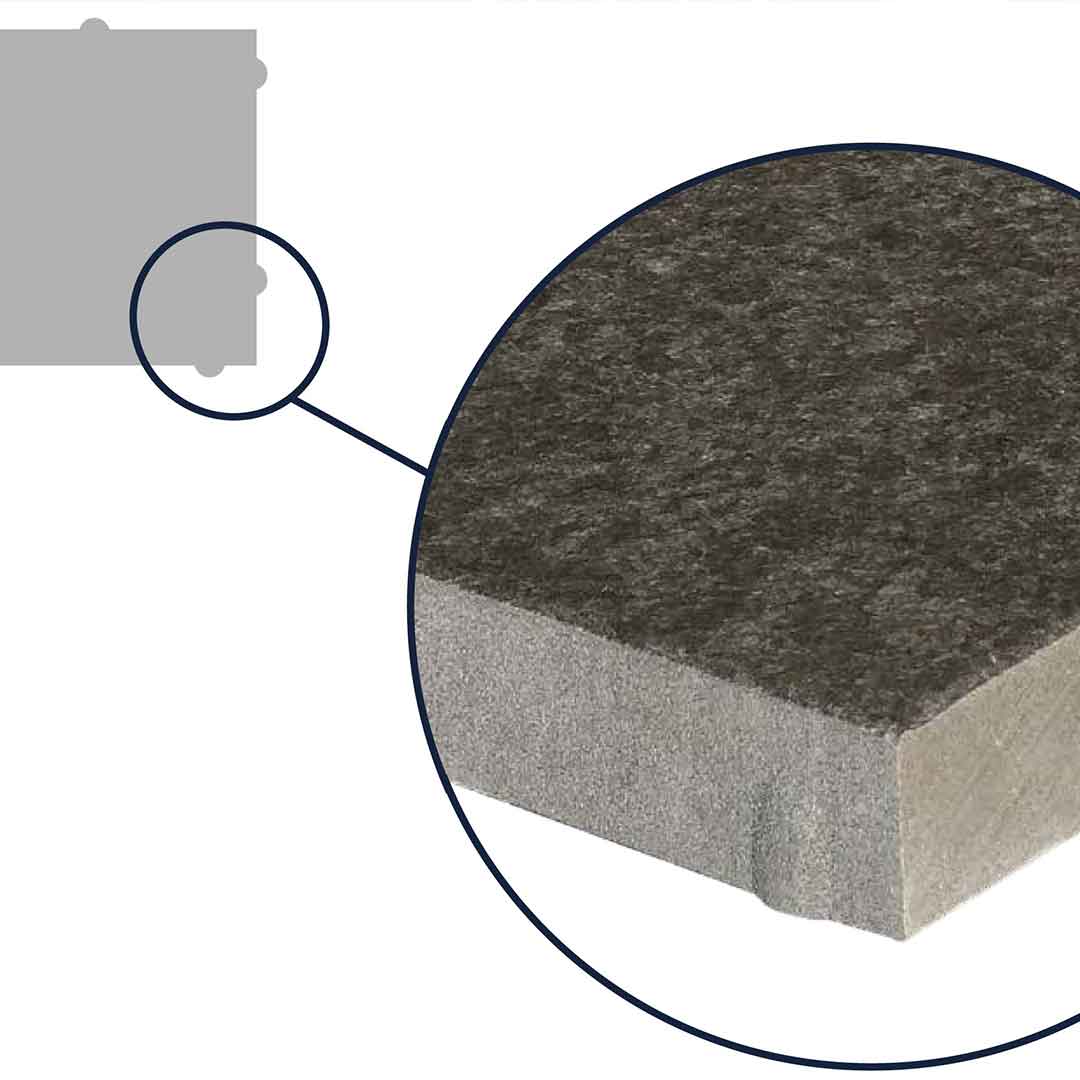

Archatrak permeable porcelain pavers include integrated spacer nibs that maintain consistent joint spacing, helping ensure reliable water infiltration and predictable drainage performance.
Water flows through the open joints between the pavers and enters an open-graded aggregate base beneath the surface. The aggregate base temporarily stores and disperses the water, allowing it to gradually infiltrate into the soil or move toward drainage systems.
Consistent joint spacing created by built-in spacer nibs helps maintain uniform drainage performance across the paved area.
Permeable porcelain pavers are commonly used for driveways, parking areas, access lanes, and other paved surfaces where managing stormwater runoff is important.
They provide the appearance and durability of porcelain paving while supporting drainage through the joint openings and underlying permeable base.
