With installations in some of the most remote and demanding environments in over 35 countries, SBL commercial-grade solar powered bollard lights have become a trusted choice for reliable boardwalk, dock, and pathway illumination
Fully sealed and self-contained, these fixtures provide continuous, full-power lighting from dusk until dawn, 365 days a year, without trenching, conduit, or grid power.
SBL Solar Bollard Lights are well suited to the full range of waterfront and pathway applications — from marina promenades and timber boardwalks to coastal park trails and pedestrian docks. Their IP68-rated submersible construction handles tidal flooding and storm surge without issue, while the sealed, self-contained design means no electrical infrastructure to run, maintain, or repair. For any boardwalk or pathway project where running conduit is impractical or disruptive, solar bollards are a straightforward alternative.
Each fixture is custom-configured for its geographic location and site conditions, ensuring consistent light output wherever it is installed. For the full range of SBL models, configurations, and specifications, visit our Archasol website.
For a quote, email [email protected] or call (406) 551-7955.
Benefits Archasol Solar Bollard Lights for Boardwalks, Marinas, and Paths
Dusk to dawn, full power
Full brightness from dusk until dawn, never dimmed on a schedule or triggered by proximity sensors.
Performs in low light and shade
Select models run more than five days without direct sunlight. Others recharge on ambient light alone.
Submersible and impact rated
IP68 certified to 10 feet and IK10 impact rated. Handles tidal flooding, floating debris, and vandalism without interruption.
Bird resistant, self-cleaning dome
The smooth curved dome gives birds nowhere to land and sheds debris to keep the solar panel clear and charging.

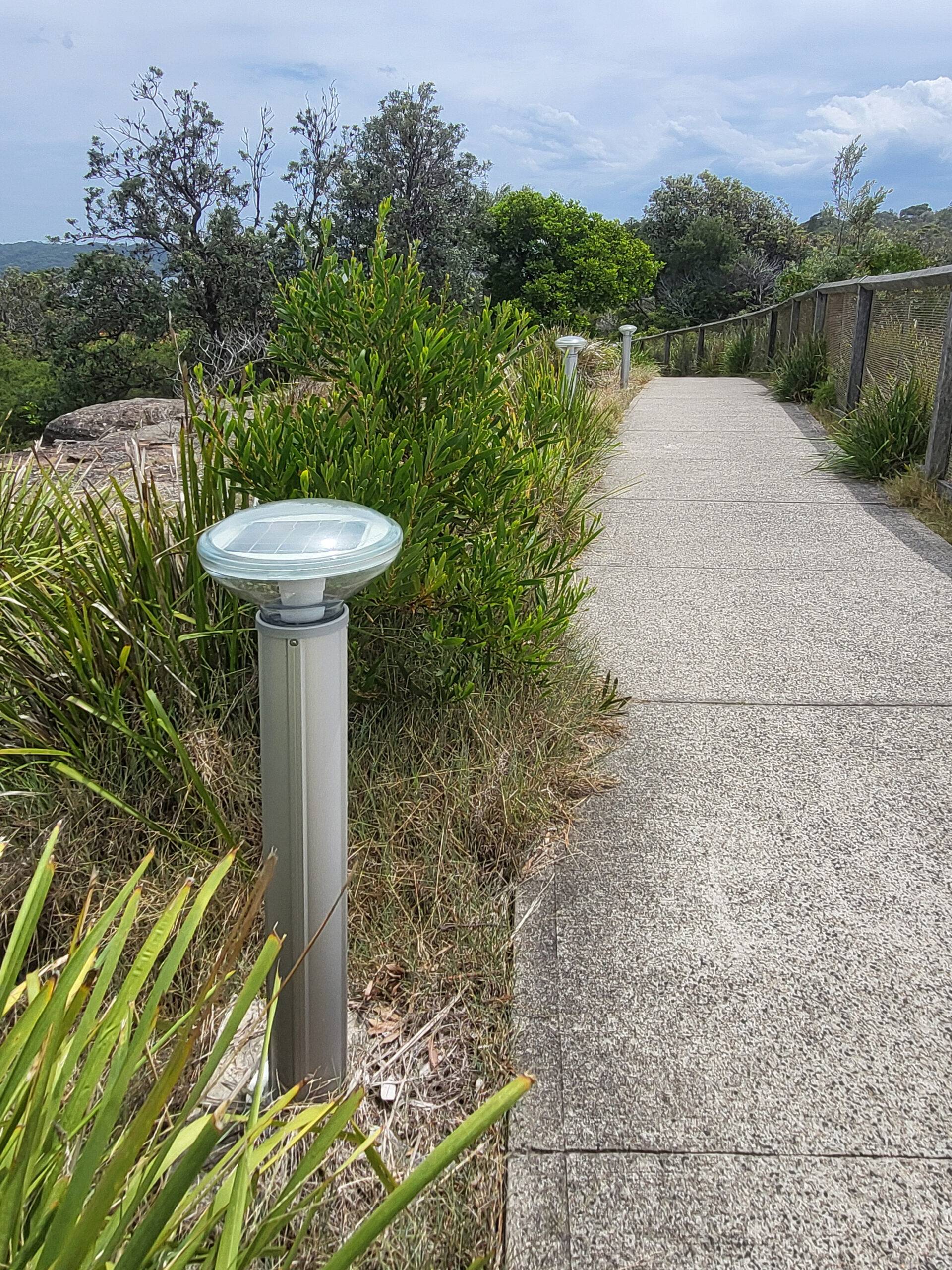

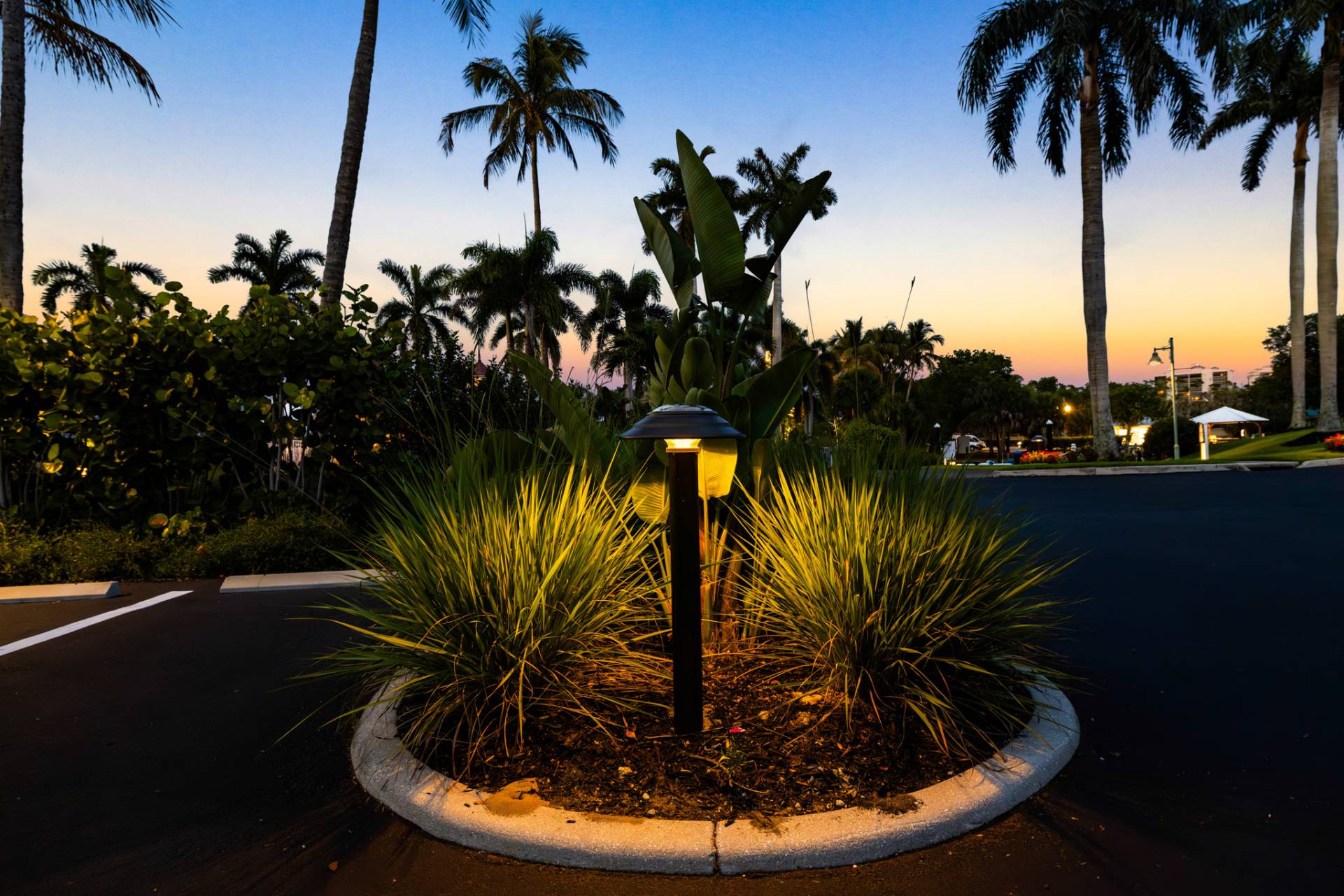

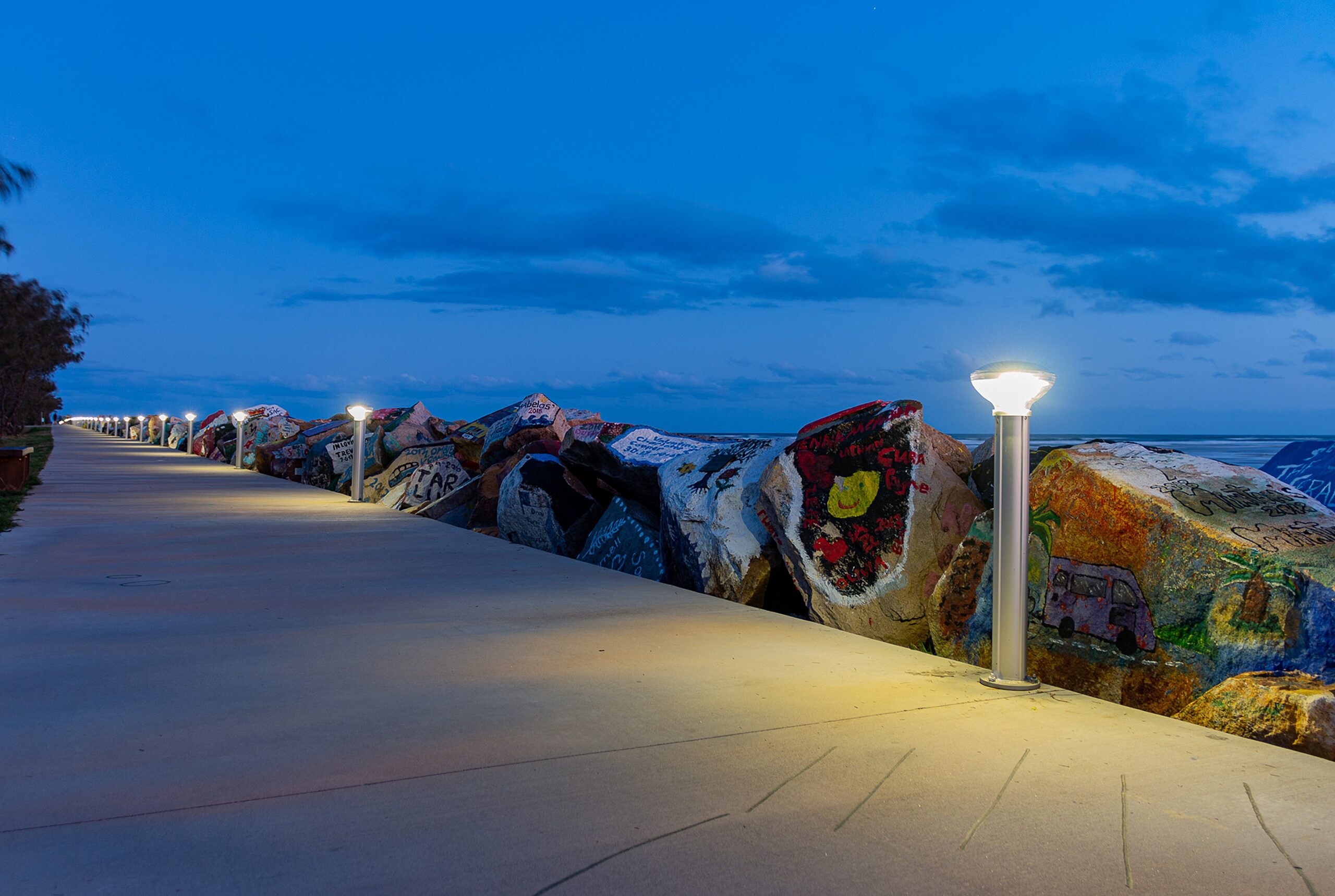

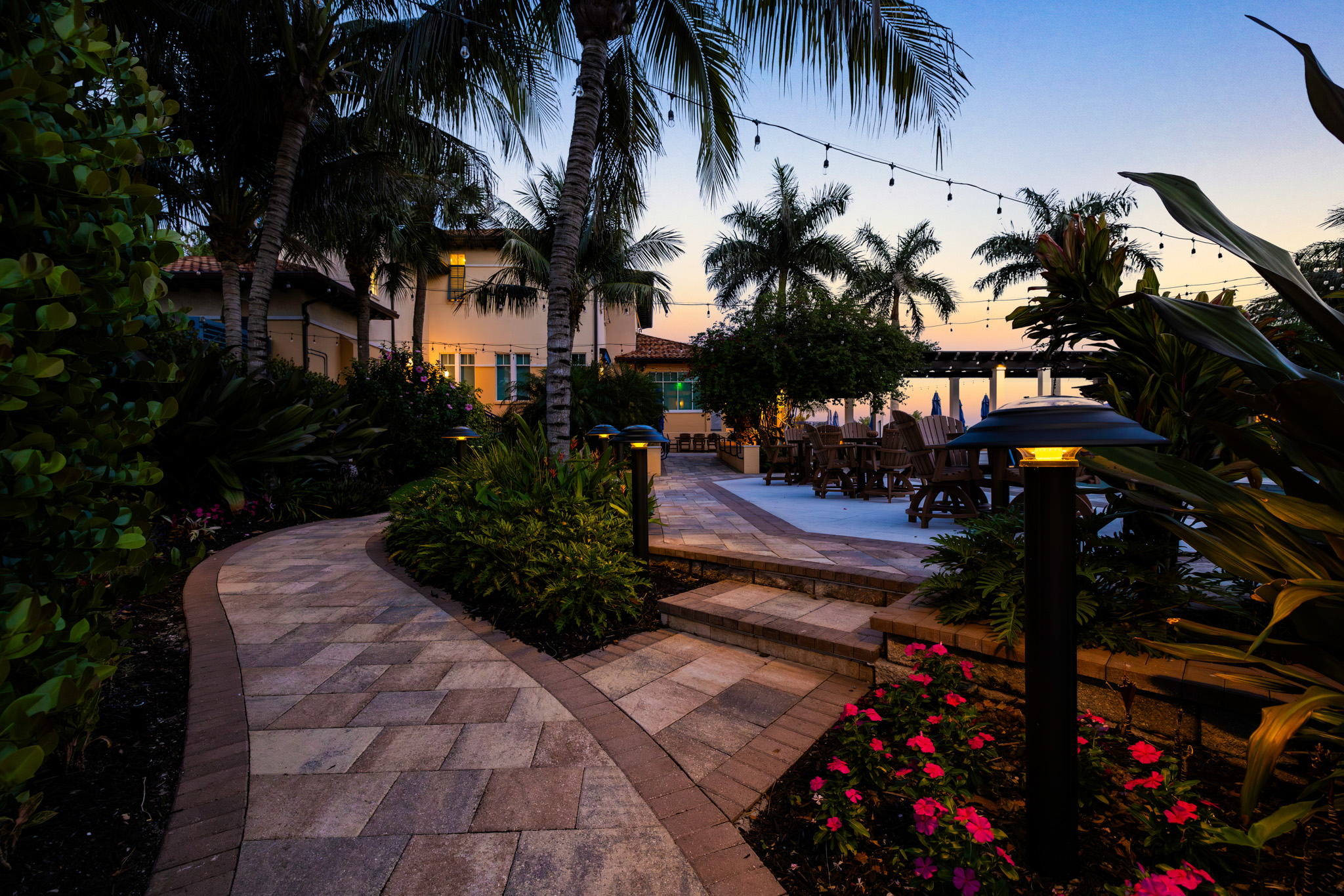

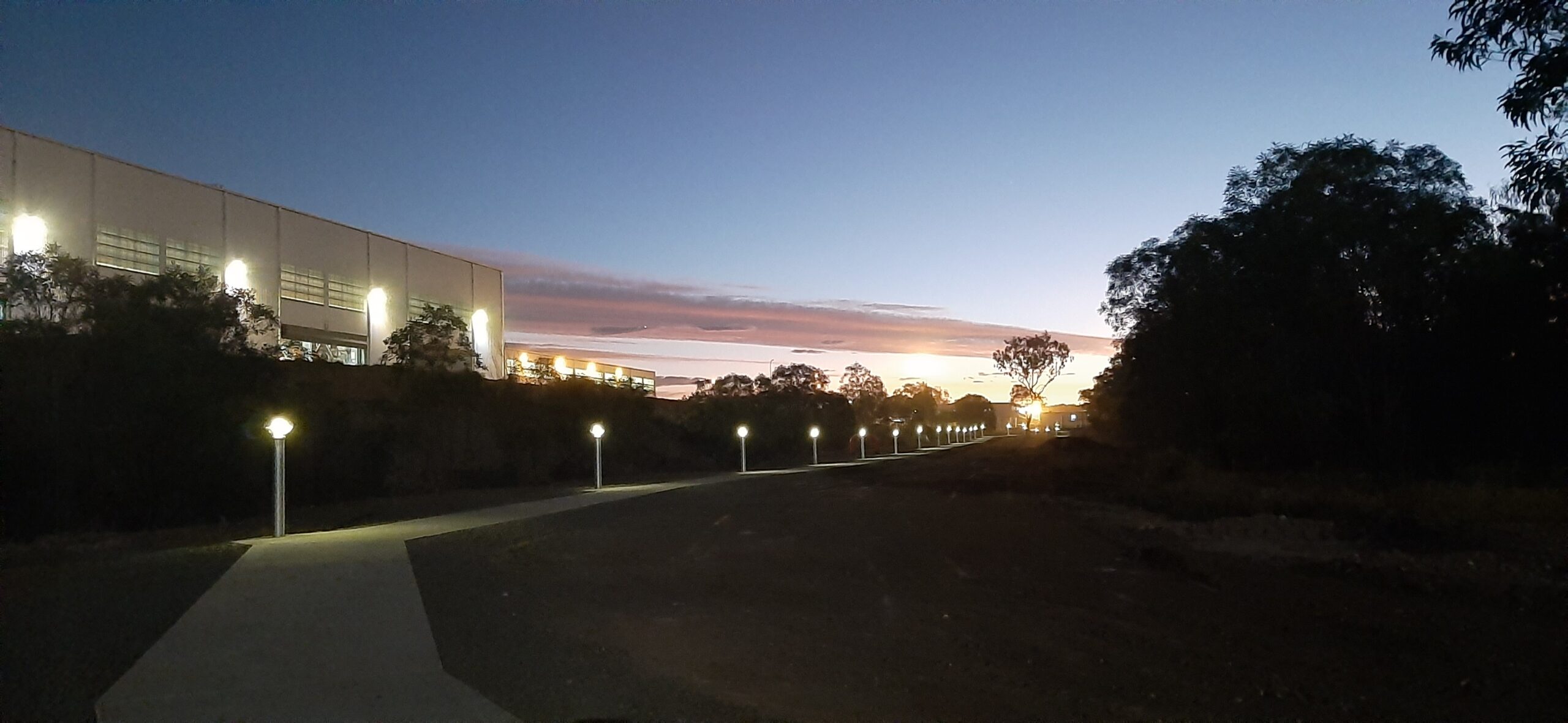

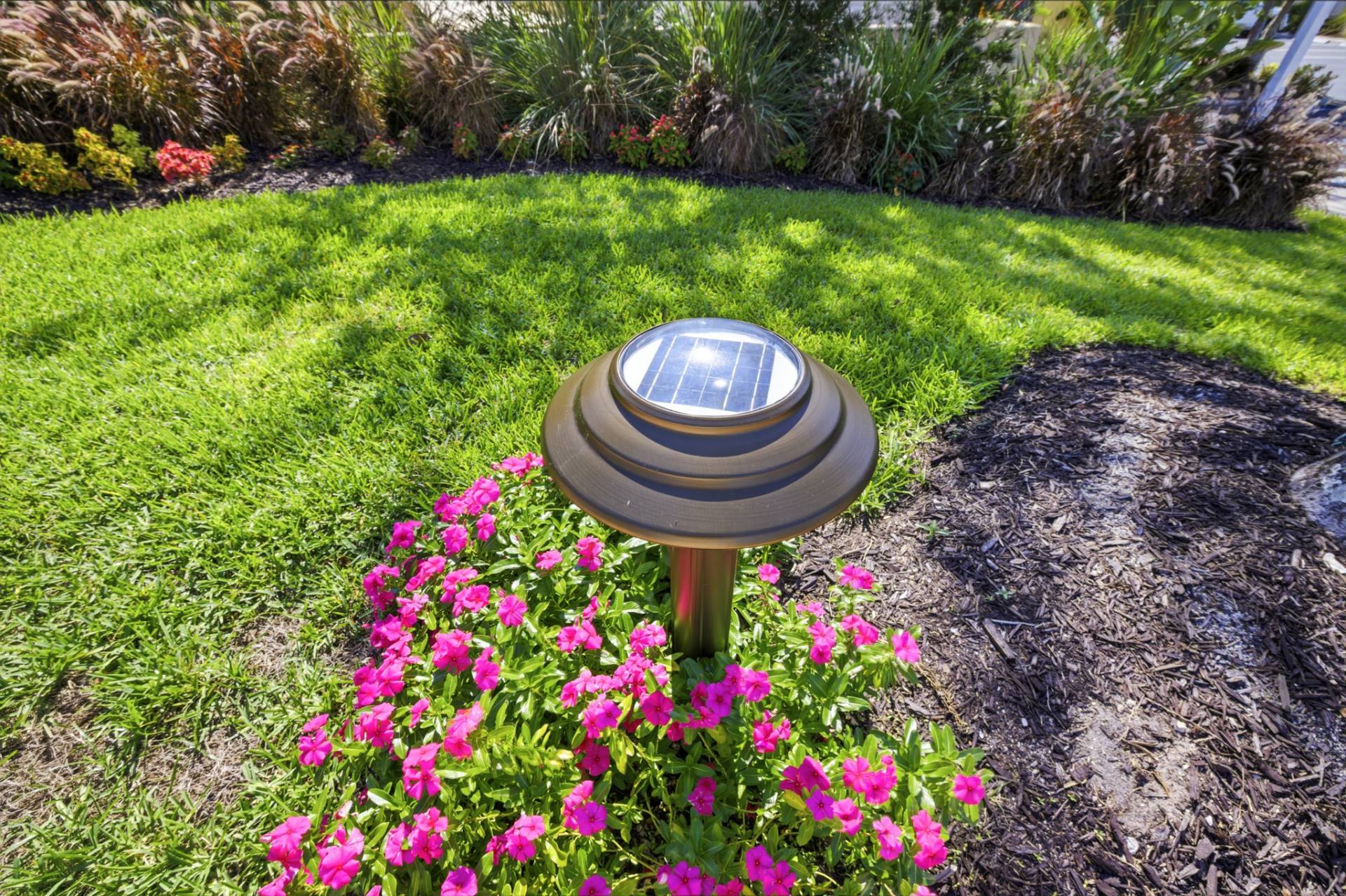

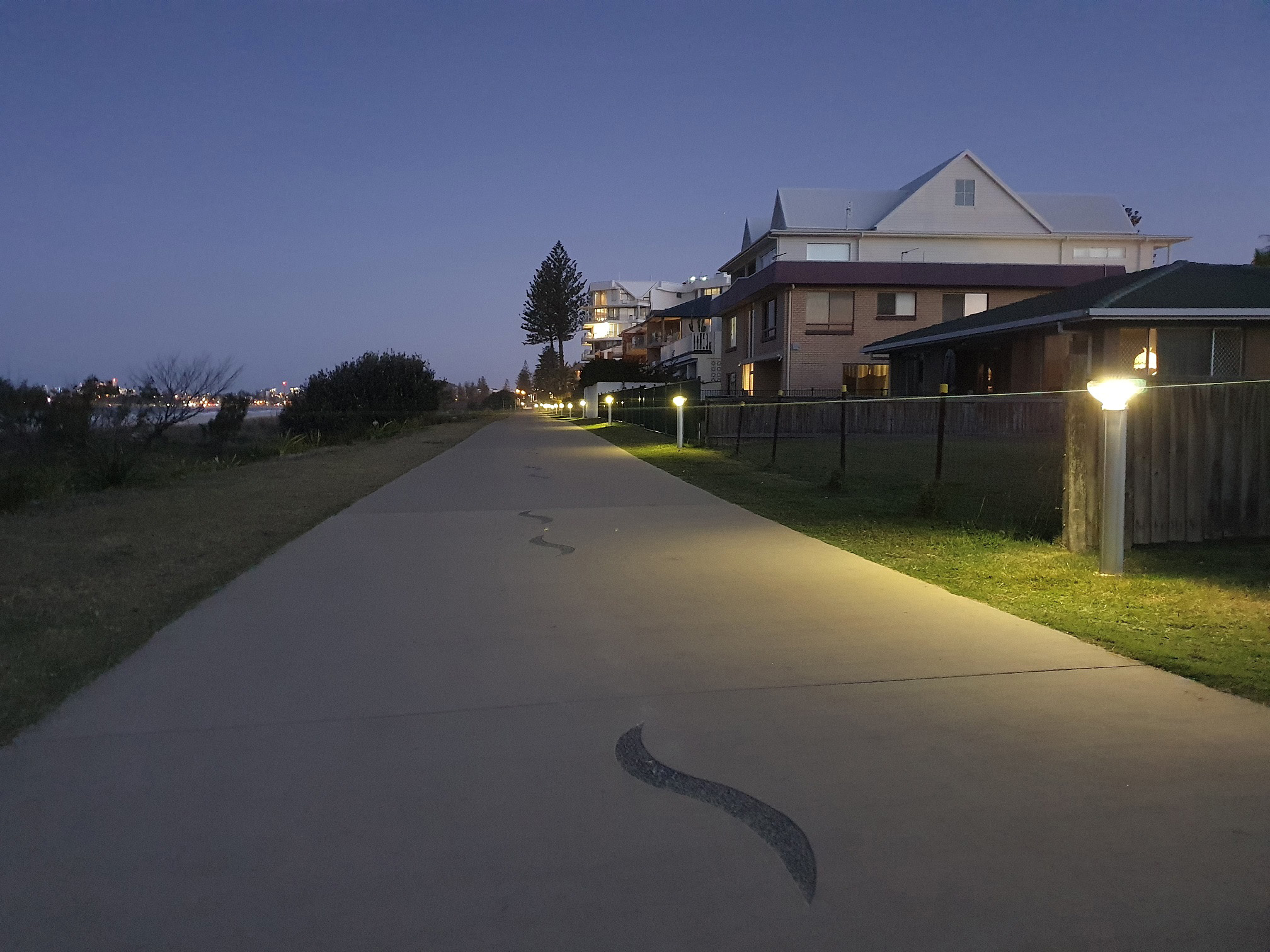

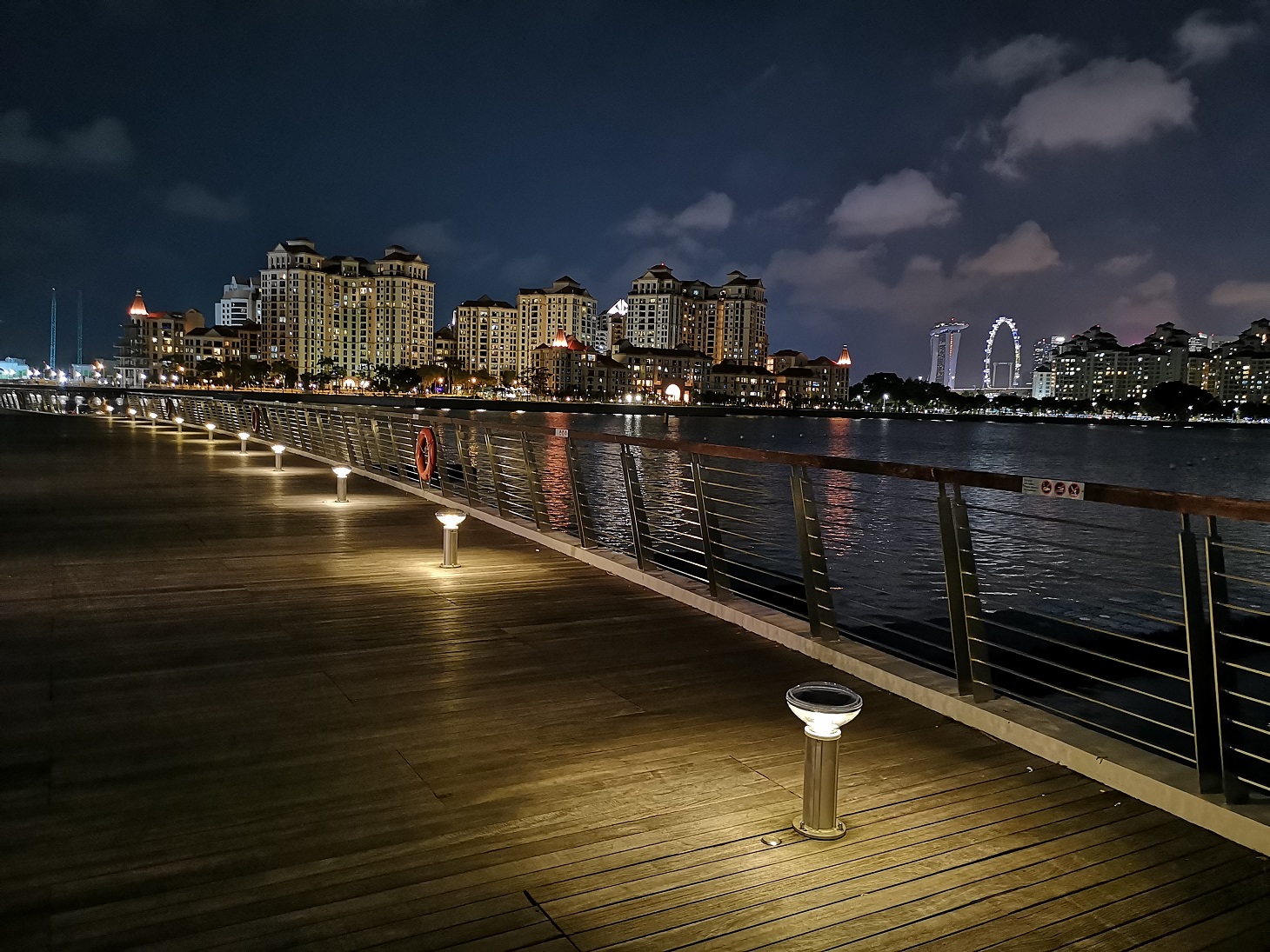

Solar bollard installations
Technical Specs
Solar Bollard Materials
Dome: LEXAN SLX Polycarbonate (Highest UV stabilized PC available). Won’t yellow or become brittle in less than 10 years.
Housing: LEXAN 203R Polycarbonate (UV stabilized)
Internal: STAREX ASA (Acrylonitrile styrene acrylate)
Poles: Aluminum 6106-T6 marine grade (25um anodized or powder coated)
Pole colors: Clear anodized (std), black anodized or powder coated available on special order.
Operating temp.: -22°F ~ +140°F ambient
LED & Solar Module
Voltage: 3.2V
LED chips: 8 x 5mm Piranha LED super bright
Light distribution: Asymmetrical or symmetrical
Color: 4300K (Natural white) or 3000K (Warm white) or wildlife friendly option (red spectrum) 605nm-620nm.
Runtime: Dusk until dawn on full power
Solar module: 5w mono-crystalline
Module design life: 10 years
Battery type: 3.2V 17Ah cylindrical LiFePo4
Battery cycles: 3700 (expected minimum)
Battery design life: 10+ years

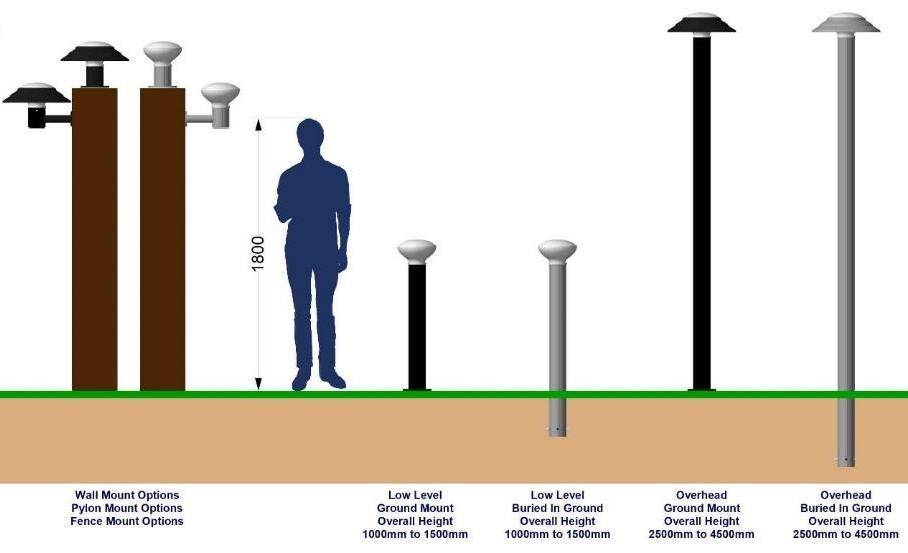

Mounting
Plate mount: 7” diam. plate with three mounting holes.
Direct bury: Up to 17″ deep.
Wall Mount: 12” overall height, with or without caps.
Pole mounted: Aluminum poles 4 1/2″ dia. – 39″ to 138″.
Multiple arrays: Single light poles or arrays with 2, 3 or 4 lights
Pole finish: Standard – Clear anodized, ebony anodized or black powder coat. Custom – Any powder coated color from Dulux Duralloy or Alphatec range.
Reflector /caps: Available as option with all models & configurations.
Warranty
SBL Solar Bollards include a 10-year manufacturer warranty.
Downloads
Datasheet
SBL Solar Bollard
Depending on the LED power rating, SBL bollard lights can operate for more than five days without direct sunlight. Select models are configured to recharge on ambient irradiation alone, making them a workable option for tree-lined pathways or locations with extended overcast periods.
Yes. SBL bollard lights are IP68 certified to depths of 10 feet and are regularly installed in areas subject to tidal flooding and storm surge. The fully sealed housing and marine-grade aluminum construction mean they continue operating normally after submersion.
They are used across boardwalks, marina promenades, coastal pathways, pedestrian docks, fishing piers, and park trails. They are equally practical for any pathway project where running conduit or connecting to grid power is impractical or disruptive to existing decking or landscaping.
Each fixture is custom-configured for its location, so pricing varies by model, power rating, and mounting type. Call (406) 551-7955 or email [email protected] for a quote.
