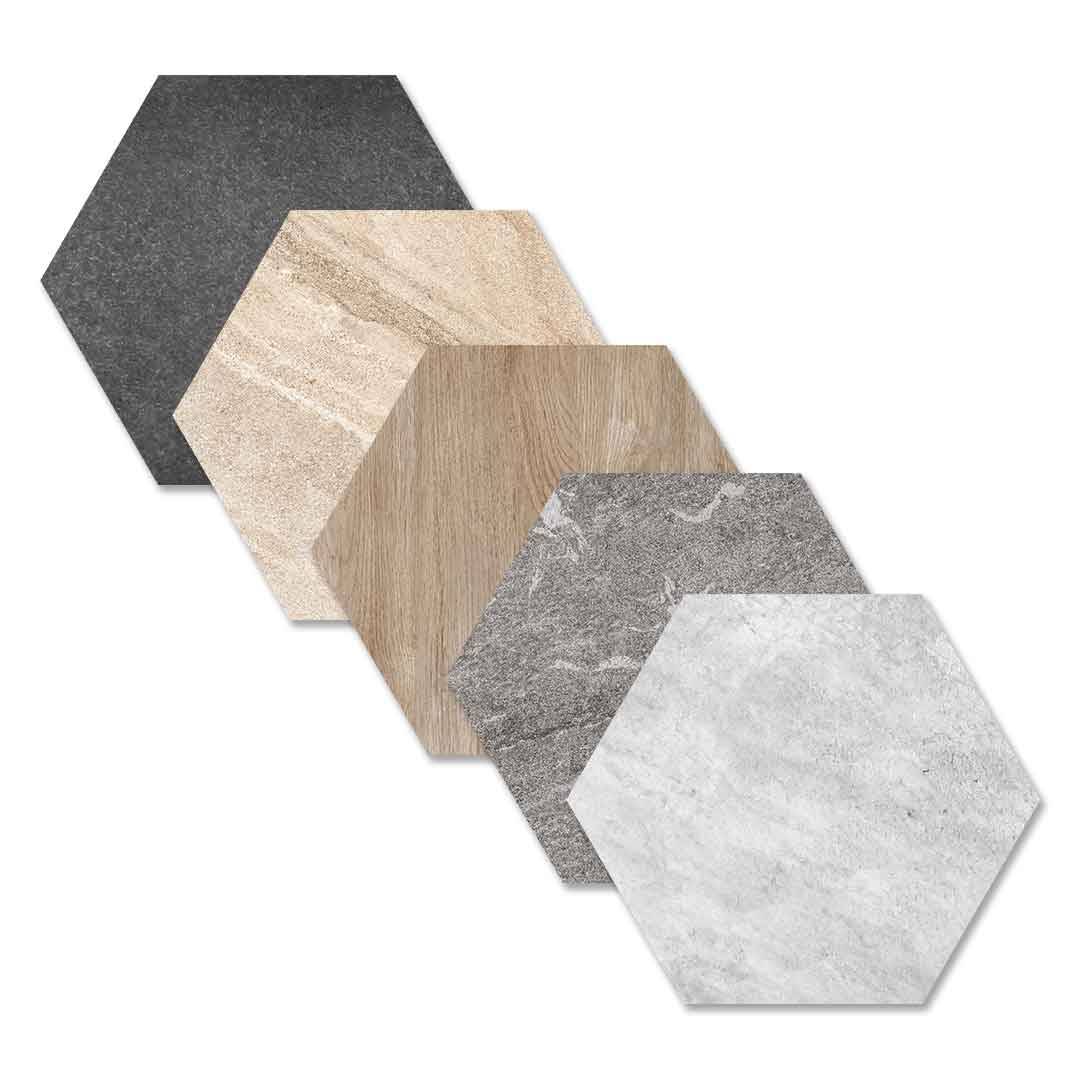

Add extra personality and style to any outdoor space with uniquely shaped hexagonal porcelain pavers.
Archatrak hexagonal porcelain pavers feature the classic hexagon shape typified by beehive honeycomb – an equilateral hexagon with all six sides the same length, and all angles at 120°.
Despite the hexagon shape, they are exceptionally easy to install because of their uniform angles and dimensions. Their unique pattern is much more intriguing than the 90° angles of rectangular or square pavers which brings visual interest to broad public plazas and residential landscaping.

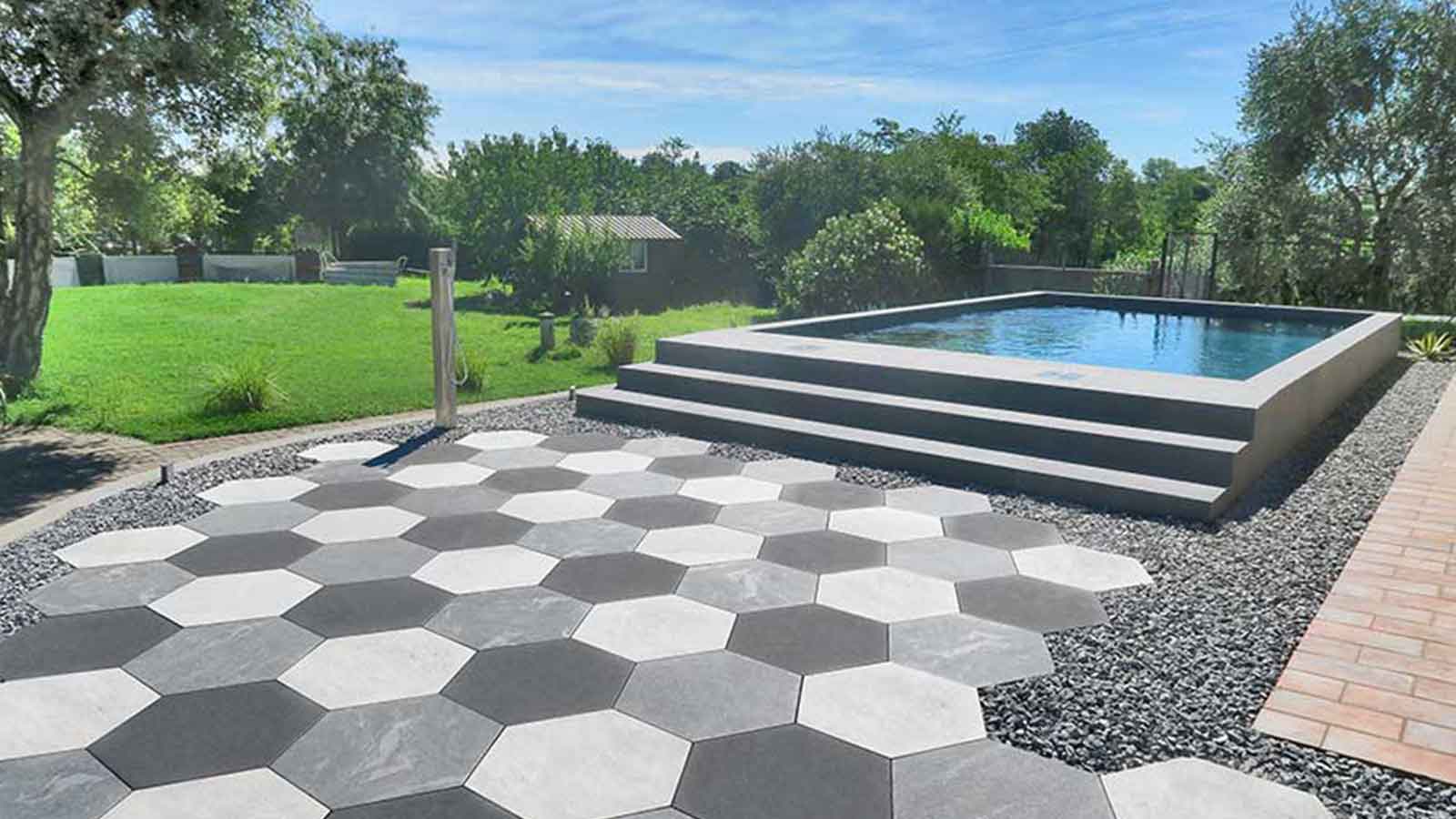

Hexagon shaped porcelain pavers can be very effectively used in landscaped areas with pebbles or crushed rock around the perimeter. The pavers are not cut, but are allowed to drift into the pebbled area. Very stylish patio designs can be achieved using a combination of darker and lighter hexagonal pavers.
Benefits of Archatrak Hexagonal Porcelain Pavers
Precision Dimensions
Rectified edges and precise angles ensure fast, trouble free installation
Stain Resistant
Virtually non porous.
Resistant to grease and oil.
Frost Resistant
No freeze/thaw cracking. No spalling. No efflorescence.
Scratch Resistant
No scratching or scuffing
Roof Deck Installation of Hexagonal Porcelain Pavers
It is not normally practical or cost effective to build rooftop decks using hexagonal pavers directly supported by adjustable height pedestals because pedestals would have to be positioned at all six corners.
However, hexagonal porcelain pavers can be laid successfully on rooftops using Archatrak SpanTrak fiberglass grating panels supported with pedestals. The hexagonal pavers are placed over the panels, separated by a 1/8″ thick mat of recycled rubber for noise suppression. ‘Y’ shaped spacers (available from several online suppliers)are used to correctly space the pavers.

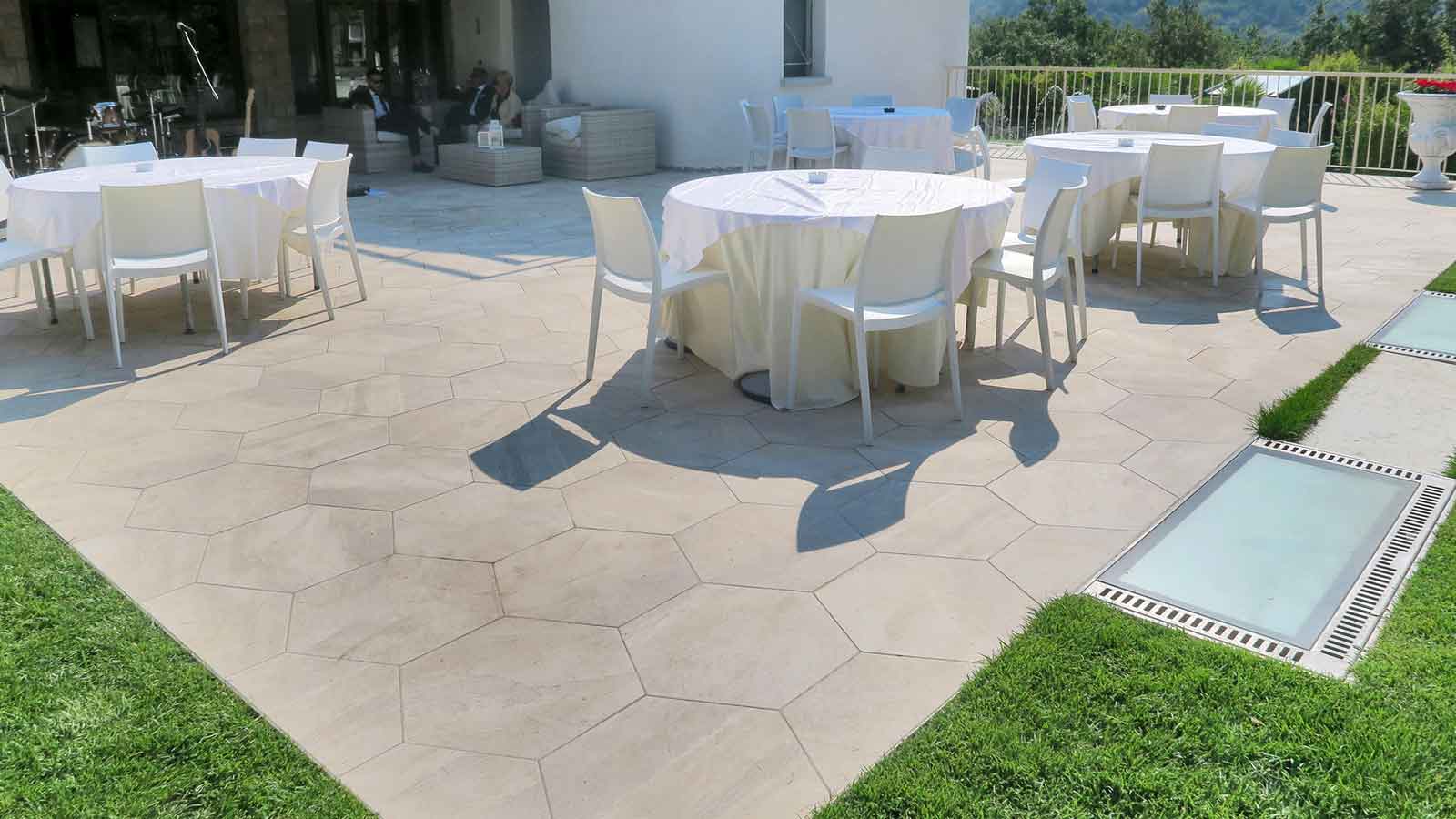

Hexagonal Paving Examples
Technical Specs
Size:
24” x 20” x 12″
Area:
2.5 sq.ft./paver
Weight:
23 lb. ea.
Packing:
70 pcs./pallet
176 sq.ft./pallet
Note: Direct import from Italy by Archatrak.
Subject to minimum order of 1 pallet (176 sq.ft.).
Specifications
The chart available in the download link below shows technical characteristics typical of production across several manufacturing facilities.
Please contact an Archatrak representative if you wish to confirm specifications or technical information on Hexagonal porcelain pavers.
Test Data
Testing data for Archatrak 2cm pavers – including slip resistance, SRI measurements, breaking strength, fire resistance and general properties can be accessed from the download file below.
Solar Reflectance Test Data
Spread of Flame Test Data
Wall of Wind Test Data
Porcelain Pavers Slip Resistance Test Data
Ipe and Porcelain Pavers Load Test Data 2cm
Installation Options
For most applications, Archatrak hexagonal porcelain pavers can be laid dry by simply placing them in the desired position over a well compacted sand/gravel bed, without the need for any mortar, adhesives or concrete base.
The general installation method is similar to the 2cm porcelain paver installation method as described in our notes for installation over sand or gravel beds, except that ‘Y’ shaped spacers are required when laying rather than cross shaped spacers.
Laid over sand/gravel beds
Set in mortar
Warranty
Archatrak warrants that T20 2cm hexagonal porcelain pavers sold by Archatrak are manufactured in accordance with ISO 13006 and will meet or exceed the performance specifications outlined in these standards.
If it is established that any Archatrak porcelain 2cm porcelain paver has a manufacturing defect resulting from it not being manufactured in accordance with the said standards, we will replace the defective paver(s) free of charge with paver(s) of compatible color and shade as determined by us.
The complete warranty document can be downloaded from the link below.
Archatrak Porcelain Pavers Warranty
Request a Pricing Quote
Our team uses advanced estimating tools to produce fast, accurate paver, pedestal, and FRP quotes, often the same day as the request.
Order Porcelain Paver Samples
Order free samples to evaluate porcelain paver finishes, textures, and colors in person before making your final selection.
FAQs
Frequently Asked Questions About Archatrak Hexagonal Porcelain Pavers
Hexagonal porcelain pavers offer a unique geometric aesthetic that enhances the visual appeal of outdoor areas. They are highly durable, weather-resistant, and provide a non-slip surface, making them ideal for patios, walkways, and pool surrounds. Additionally, their precise dimensions allow for seamless installation and creative design patterns.
The primary consideration to note is that hexagon outdoor pavers need to be cut on one side if they are being laid up against a wall or restraining barrier. This also requires a bit of planning if there is a wall on the opposite side as you want to avoid being left with small triangular gaps that need to be infilled with cut pavers.
Hexagonal pavers provide a distinctive, modern look that sets them apart from traditional shapes. Their six-sided design allows for more intricate and visually interesting layouts. Functionally, they offer the same durability and low maintenance as other porcelain pavers but with added design versatility.
Yes, Archatrak’s hexagonal porcelain pavers are designed to withstand various climatic conditions. They are frost-resistant, virtually impermeable to water, and resistant to fading, making them suitable for both hot and cold environments. Their non-slip surface also ensures safety in wet conditions.
