Stackable rubber pads for low height rooftop decks and easy patio resurfacing with porcelain pavers.
Archatrak stackable rubber support pads provide the most convenient and lowest cost means of laying porcelain pavers over existing hard surfaces such as patios without adhesives or grout. Floating decks with pavers supported by rubber pads are much more cost effective than mortar set installations and guarantee perfectly level deck surfaces on sloping substrates by stacking the pads to build up the height
On rooftop and balcony floor installations, they offer the best and most cost-effective option for laying porcelain or concrete pavers at the lowest elevations before adjustable height pedestals can be employed. (normally around 1” – 1 ½”).
Download DatasheetBenefits of Archatrak Rubber support pads
Stackable
Simply stack pads and shims to build up height.
Sound Absorbing, Shock Resisting
Ensures safer, quieter surfaces for pedestrians.
Slip Resistant
Reduces slippage of pavers on substrate.
Cost Effective
Low cost solution for patio resurfacing.
Guarantees Precision Installations
Inbuilt spacer tabs ensure precise paver spacing
Easy to Cut
Cuts easily with just a sharp knife.
Components & Installation

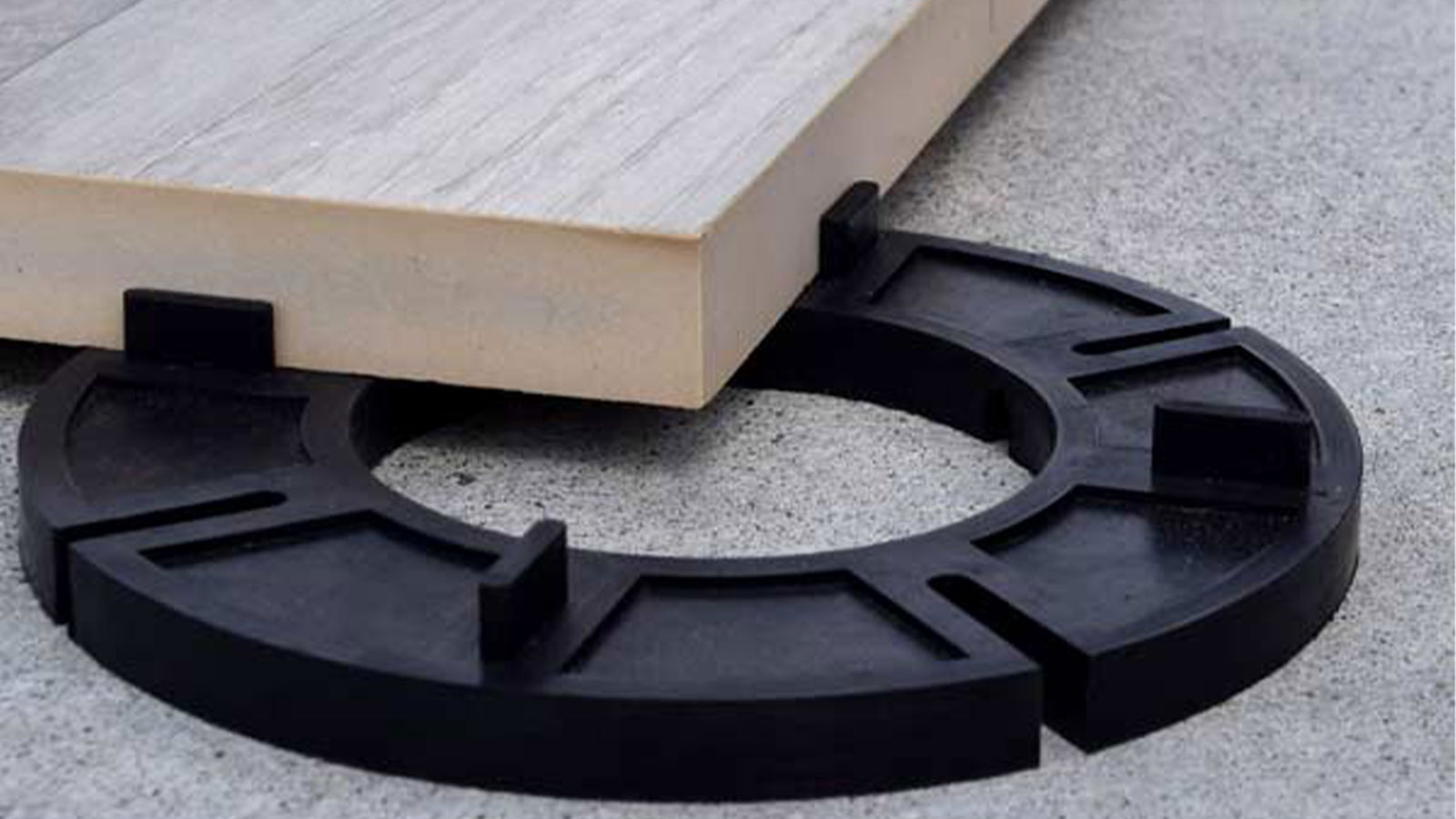

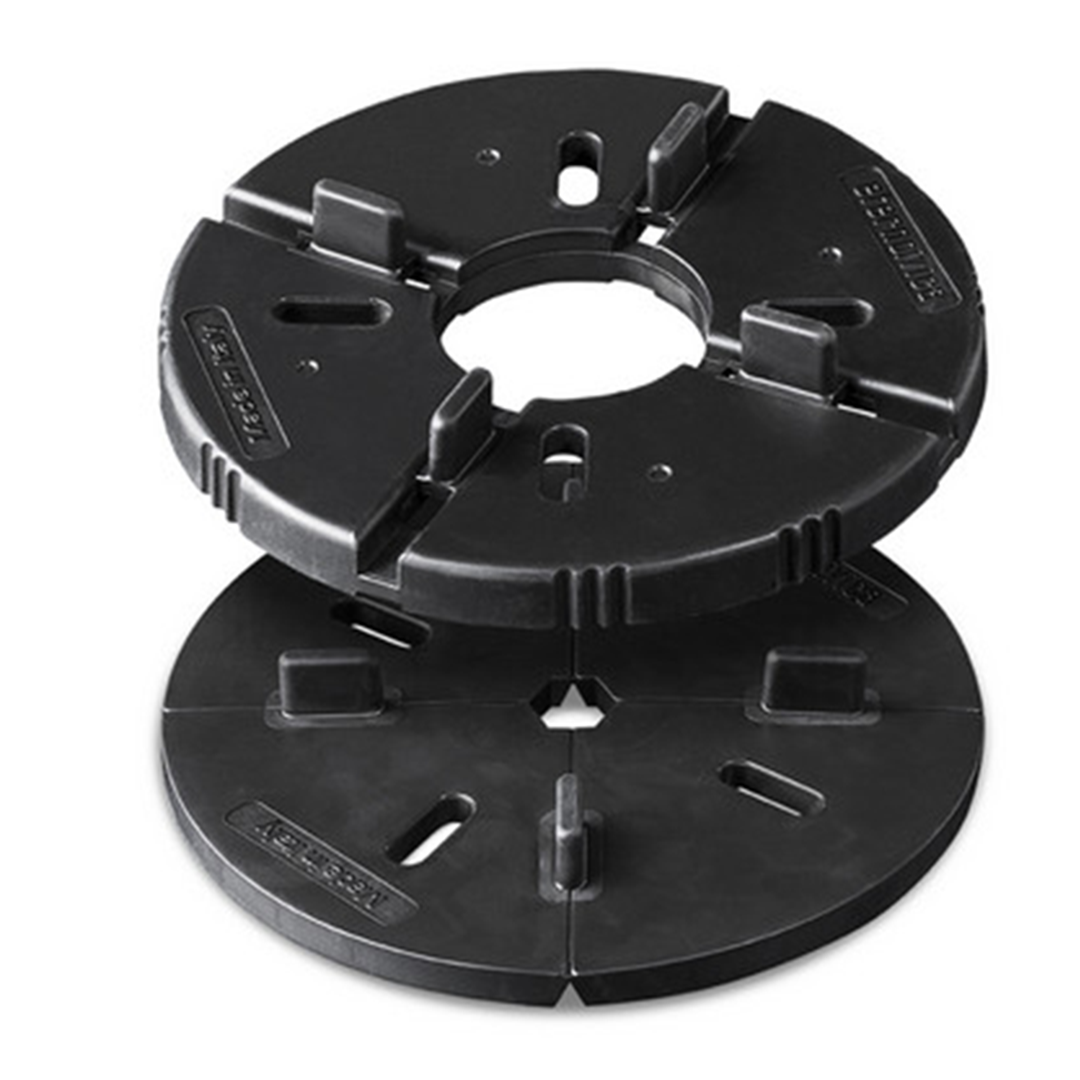

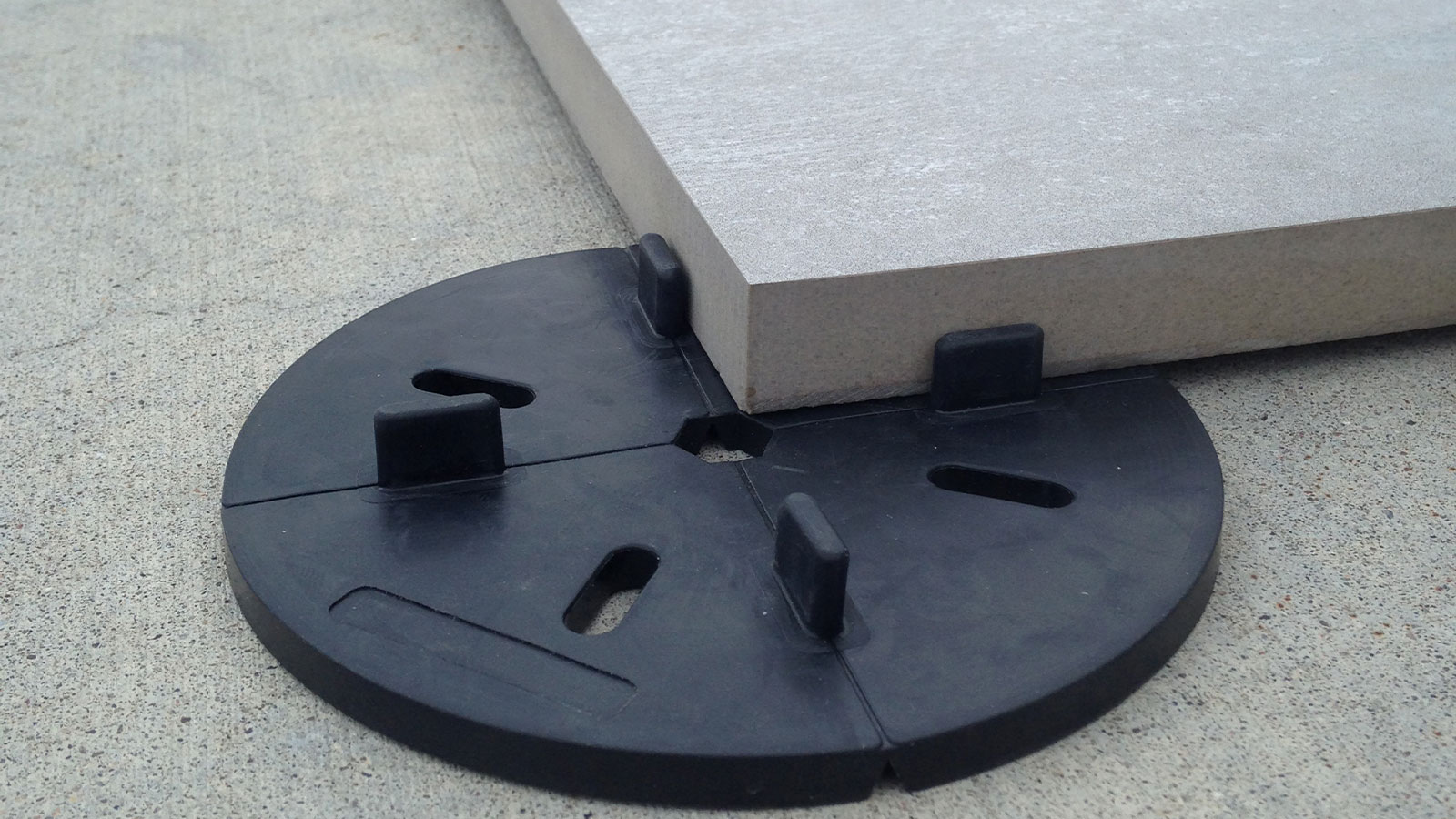

Stackable Rubber Support Pads
Pads are stacked to build up to the required height, normally to a maximum of approx. 1”- 1 ½” when adjustable height Prime or NM plastic pedestals become a more cost-effective option.
LGH2 shims are used for fine height adjustment, either using the complete shim or cut segments.
ETE-PAD6 height ¼”
ETE-PAD10 height 3/8”
LGH2 SHIM height 1/16”
Gallery
Technical Specs
ETE-PAD6
Pad thickness
¼”
Diameter
4 ⅝”
Spacer Tabs
⅜” high x 3/16” thick
ETE-PAD10
Pad thickness
⅜”
Diameter
4 ⅝”
Spacer Tabs
⅜” high x 3/16” thick
LGH2-SHIM
Shim thickness
1/16”
Diameter
4 ⅜”
Spacer Tabs
⅜” high x 3/16” thick
Installation Guide
Installation guidelines for laying porcelain, wood or concrete pavers over solid surfaces such as concrete using Archatrak fixed height rubber support pads can be seen at the page link below.
Installation Guide
Request a Pricing Quote
Our team uses advanced estimating tools to produce fast, accurate paver, pedestal, and FRP quotes, often the same day as the request.
Order Rubber Pad Sample
Order free samples to evaluate fixed height rubber pads in person before requesting a quote.
Paver Support Comparison
Premier Pedestals
NM Pedestals
Incendio Steel Pedestals
Stackable Rubber Pads
Load capacity
> 4500 lb.
> 3600 lb
> 12,700 lb.
n/a
Models required in 1”-16” range
3
5 + extender
7
n/a
Height range without extenders
3/4” – 16 ½”
1” – 10 ⅝”
1” – 19 ¼”
1 ½” max.
Extenders available
Material of construction
Polyethylene
Polyethylene
Mild steel
Rubber
Self-leveling heads
Inbuilt spacer tabs on heads
Bonded rubber faced heads
Non-combustible
Top down height adjustment
Height adjustment method
Concentric screwed columns
Single screwed column
Single screwed column
Stacked pads & shims
FAQs
Frequently asked questions about fixed height support pads and pedestal paver installations.
Archatrak fixed-height paver pads are specifically designed for supporting pavers up to an elevation of 1” – 1 ½”, beyond which adjustable height pedestals can be used. At very low deck heights, the screwed columns of adjustable pedestals do not have sufficient height range to make them cost effective to use. Conversely it is not cost effective to stack fixed height paver pads beyond about 1 ½”.
Yes, fixed height rubber support pads are designed to withstand various environmental conditions. Their all-rubber construction ensures durability against moisture, temperature fluctuations, and UV exposure. This resilience makes them suitable for outdoor applications, including areas with harsh weather.
Generally speaking, Archatrak fixed-height paver pads can be laid on top of concrete, stone, asphalt and other strong on-grade substates provided that they are flat and stable and that the pads are not placed over uneven joints.
