Steel deck supports for constructing totally non-combustible elevated decks where strict fire regulations are in force.
With fire safety regulations becoming increasingly strict, particularly in dense urban and wildland/urban interface zones, polypropylene paver supports are no longer a viable option in many locations. Often, they’re not permitted even with fire-retardant compounds included in the polymer.
Archatrak’s Incendio steel pedestals offer exceptional fire resistance without compromising on cost, making them a practical and reliable alternative to plastic paver supports for elevated deck projects requiring totally non-combustible materials.
Archatrak Incendio pedestals comply fully with the highest fire safety standards including meeting all criteria specified under ASTM E136.
Download DatasheetBenefits of Archatrak Incendio Non-Combustible Paver Supports
Totally Non-Combustible
All steel construction. Will not catch fire, create smoke, or spread flames.
Exceptionally High Load Capacity
Supports up to 12,700 lbs.
Strong and Solid
Will not crack, split, soften, bend or warp
Cost Effective
Comparable in price with non-fireproof plastic pedestals.
Steel Pedestal Gallery
Technical Specs
Height Range
Continuously adjustable from 1″ to 19 1/4″.
INCEND-01
1″ – 1 1/4″
INCEND-02
1 1/4″ – 1 3/4″
INCEND-03
1 3/4″– 2 1/2″
INCEND-04
2 1/2″ – 4″
INCEND-05
3 3/4″ – 6 1/4″
INCEND-06
6 “– 10 5/8″
INCEND-07
10 1/4″ – 19 1/4″
Material
Mild steel
Finish
Anti corrosion coating

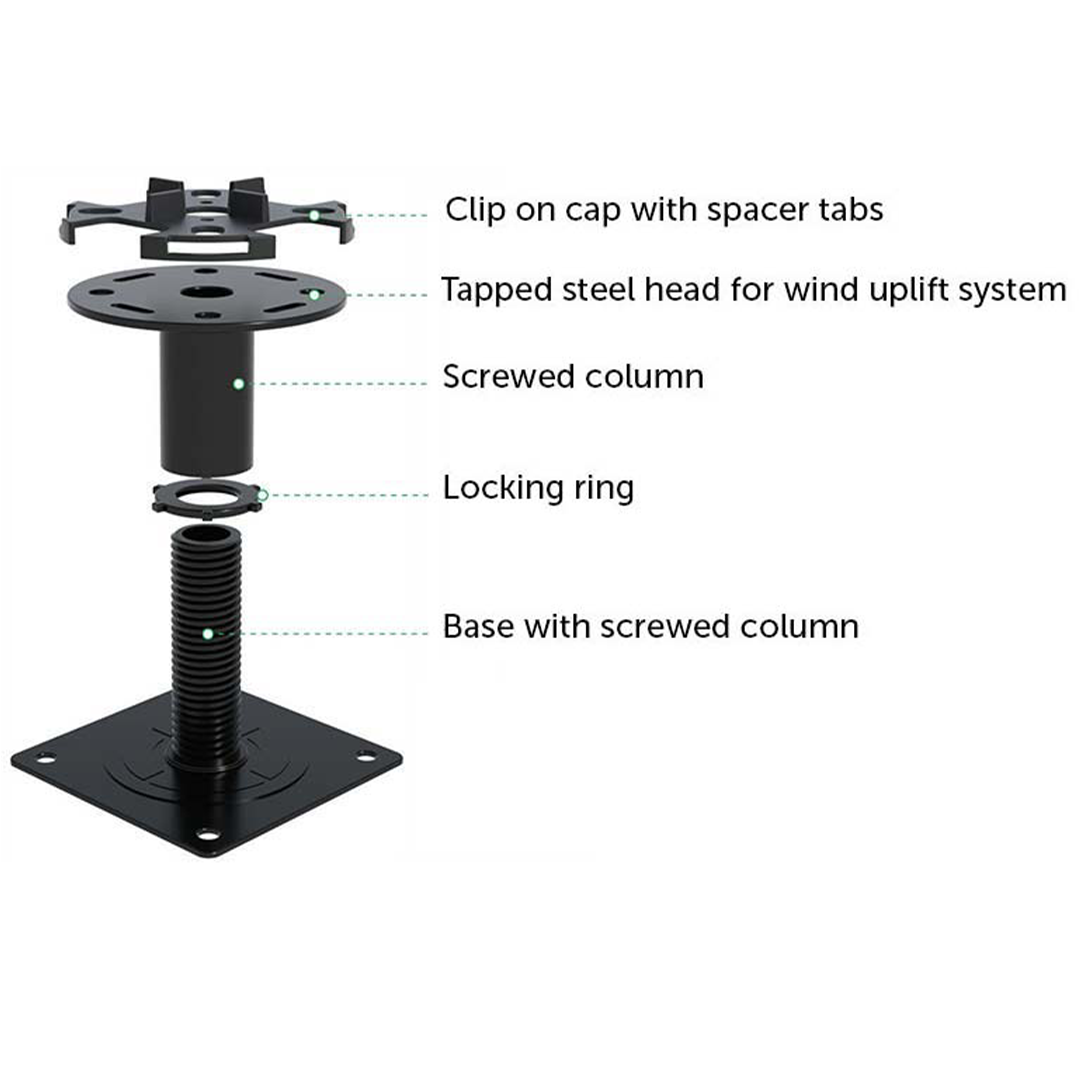

Head
Steel 3 ¾” dia.
Base
Steel 4” x 4”
Head Caps
Clip on Polypropylene. Spacer tabs ½” high, 3/16” thick
Compressive Load
> 12,700 lb.
Fire Rating
Class A1/A2
Installation Guide
Installation guides for building elevated decks with porcelain, wood or concrete pavers laid over Archatrak adjustable deck pedestal supports can be seen at the page link below together with a short video illustrating the various stages of installation.
The installation procedure with Incendio rooftop steel pedestals is similar, with the notable exception that the base of the steel pedestals cannot be cut to bring the pedestals closer to any perimeter wall or parapet.
Installation Guide
Warranty
Archatrak warrants that adjustable paver supports sold by us under the brand name Incendio will remain free from defects for a period of three (3) years from date of purchase.
Download full warranty
Downloads
Incendio Pedestal Data Sheet
Archatrak Non Combustible Porcelain Roof Paver System GuideSpecs 077616
ASTM E136 Incendio Fire Testing
Archatrak Incendio Non-Combustible Pedestals – CAD drawings
Incendio 3D Models
Archatrak Incendio Non-Combustible Pedestals Height Chart – CAD drawings
Paver Support Comparison
Premier Pedestals
NM Pedestals
Incendio Steel Pedestals
Stackable Rubber Pads
Load capacity
> 4500 lb.
> 3600 lb
> 12,700 lb.
n/a
Models required in 1”-16” range
3
5 + extender
7
n/a
Height range without extenders
3/4” – 16 ½”
1” – 10 ⅝”
1” – 19 ¼”
1 ½” max.
Extenders available
Material of construction
Polyethylene
Polyethylene
Mild steel
Rubber
Self-leveling heads
Inbuilt spacer tabs on heads
Bonded rubber faced heads
Non-combustible
Top down height adjustment
Height adjustment method
Concentric screwed columns
Single screwed column
Single screwed column
Stacked pads & shims
FAQs
Frequently asked questions about Incendio non-combustible pedestals and pedestal paver installations.
Traditional plastic pedestals, even those with fire-retardant additives claiming to be non-flammable supports, are inherently combustible and may not be in full compliance with fire regulations for elevated decks.
In contrast, Incendio fire-rated pedestals are made entirely of steel, rendering them non-combustible and in full compliance with fire regulations and rigorous local fire codes. This non-combustible nature makes them ideal for applications where fire safety is a paramount concern, such as rooftop decks in urban areas with stringent building codes.
When installing Incendio steel deck supports, it’s important to note that, unlike plastic pedestals, the steel base cannot be trimmed to fit closer to perimeter walls or parapets. Therefore, precise planning is essential to ensure proper placement. As with any adjustable height pedestals, setting them as level as possible before finalizing the installation will help achieve a level and stable decking surface.
Although the 4” x 4” totally flat steel base distributes the load evenly over roofing membranes, an optional 9″ x 9″ buffer pad can be supplied for placement under the base of the steel deck supports if required.
