Heavy duty, Archatrak 3cm thick (1 ¼”) porcelain pavers combine superior aesthetic appeal with excellent durability and strength for demanding commercial spaces – high pedestrian traffic roof decks, driveway paving, and public landscaping.
With almost three times the breaking strength of 2cm porcelain pavers, but just ½″ thicker, Archatrak T30 (3cm) porcelain pavers offer an unmatched alternative to concrete or brick paving in high traffic, commercial environments, including public plazas, pedestrian walkways, shopping precincts, pavements, sidewalks, driveways, and other broad area landscape paver projects.
Designed to handle substantial loading, T30 porcelain pavers can support wheel loadings of over six tons, allowing their use in driveways, parking areas, pads, and zones with light to medium vehicular traffic.
Despite their heavy-duty nature, T30 3cm porcelain pavers maintain all the valuable benefits of 2cm porcelain pavers – outstanding stain resistance, wear and fade resistance, slip resistance, frost resistance, and refined aesthetics – while delivering significantly greater breaking strength for long-term performance and peace of mind.
Benefits of Archatrak T30 3cm Porcelain Pavers
High Load Bearing
Breaking strength of over 4700 lbf – 3 times 2cm pavers
Stain Resistant
The low porosity surface resists grease, oil, and everyday staining.
Frost Resistant
No freeze/thaw cracking. No spalling. No efflorescence.
Scratch Resistant
No scratching or scuffing
Unmatched Color Options
Rich, deep colors and styles to suit any environment
Safe for Vehicular Traffic
Can support wheel loadings of more than 6 tons
Paving for Pedestrian Walkways & Plazas
With a wide selection of fade-free colors and contemporary styles, Archatrak 3cm porcelain pavers make it easy to create striking pedestrian walkways and public outdoor spaces that withstand the test of time. Their highly scratch, scuff and stain resistant surface, combined with outstanding strength and durability, delivers a low-maintenance paving solution with significantly superior aesthetic appeal compared to traditional paving options.

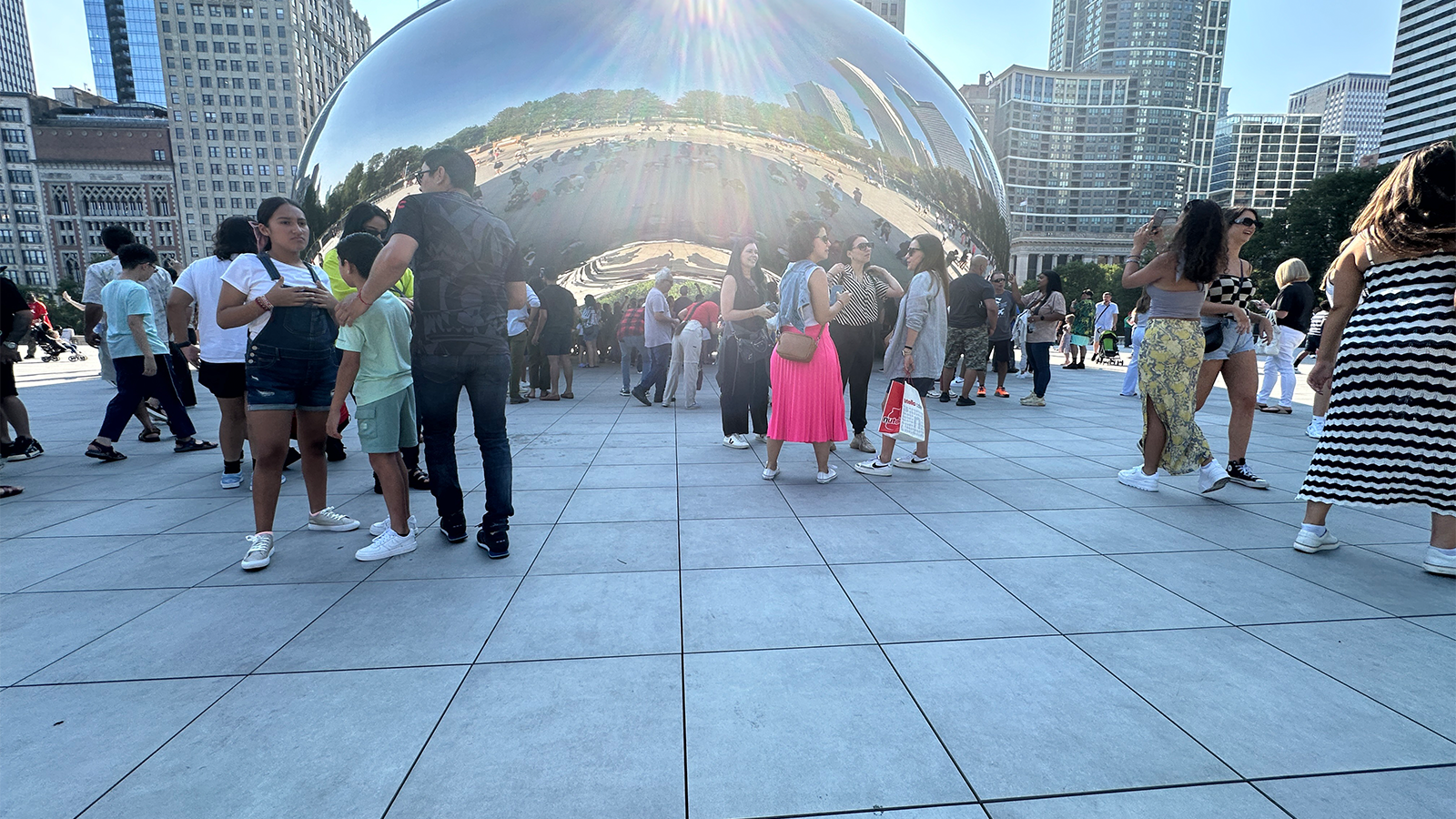

A standout example of this performance can be seen at Millennium Park in Chicago. The plaza surrounding the iconic Cloud Gate sculpture – better known as “The Bean” – welcomes around 25 million visitors each year, making durability and maintenance critical. In 2024, the original concrete pavers were replaced with Archatrak T30 porcelain pavers, installed over an FRP grid supported by Archatrak adjustable height pedestals, creating a long-lasting, high-performance surface designed for extreme foot traffic.
In addition to large-format 24″ × 24″ and 16″ × 32″ slab pavers, the Archatrak 3cm range also includes select colours in a 6″ × 12″ format. These pavers feature integrated side lugs for fast installation and consistent joint spacing, ideal for permeable paving installations where high aesthetic appeal is a paramount consideration.
Gallery
Technical Specs
Archatrak 3cm porcelain pavers are available in a range of colors and styles including stone, rustic, cement, and wood look.
All our T30 3cm porcelain pavers are currently imported from Italy, typically with 8-12 weeks delivery time.
The most commonly requested size of Archatrak porcelain pavers is 24″ x 24″ nom.
Weight:
13.5 lbs. /sq.ft | 52 lbs. / paver
Selected colors are also available in 16″ x 32″, 36″ x 36″ and 16″ x 24″. The product info pages accessed from our Browse All Colors page show the sizes available in each of the 3cm paver colors we supply.
Specifications
Since Archatrak supplies porcelain pavers produced in different factories by different manufacturers, technical specifications may vary slightly between different pavers or different colors. The chart available in the download link below shows technical characteristics typical of production across these manufacturing facilities.
Please contact an Archatrak representative if you wish to confirm specifications or technical information for a specific paver color or size.
Test Data
Testing data for Archatrak 3cm pavers can be accessed from the download file below.
3cm Porcelain Pavers Load Test Data
Installation Options
Installation guides detailing the most common installation methods for Archatrak 3cm pavers can be accessed by clicking on the following links.
Download Installation GuideSupported by adjustable height pedestals
Laid over sand/gravel beds
Set in mortar
Laid among grass
Warranty
Archatrak warrants that T30 3cm porcelain pavers sold by Archatrak are manufactured in accordance with ISO 13006 and will meet or exceed the performance specifications outlined in these standards.
If it is established that any Archatrak 3cm porcelain paver has a manufacturing defect resulting from it not being manufactured in accordance with the said standards, we will replace the defective paver(s) free of charge with paver(s) of compatible color and shade as determined by us.
The complete warranty document can be downloaded from the link below.
Archatrak Porcelain Pavers Warranty
Downloads
Archatrak T30 Porcelain Paver Brochure
Archatrak T30 Porcelain Pavers-CAD Drawings
Porcelain Pavers Technical Characteristics
3 Part Guidespecs-077616 Porcelain Roof Paver Systems
Spansafe Break Through Protection Plates – Cut Sheet
Installation Guide
Archatrak 3cm Paver Wind Uplift Mitigation System
Heatizon Snow Melt System – CAD Drawings
Request a Pricing Quote
Our team uses advanced estimating tools to produce fast, accurate paver, pedestal, and FRP quotes, often the same day as the request.
Order Porcelain Paver Samples
Order free samples to evaluate porcelain paver finishes, textures, and colors in person before making your final selection.
3CM porcelain pavers offer exceptional durability and weather resistance, making them ideal for high-traffic areas like driveways and patios. Their slip-resistance ensures safety, even when wet, and their low porosity makes them resistant to stains and weather conditions. Additionally, they require minimal maintenance and retain their aesthetic appeal over time.
Compared to traditional concrete pavers, 3CM porcelain pavers are more durable and less prone to cracking or fading. They are also lighter, making installation easier. Their non-porous nature means they are more resistant to stains and require less maintenance, providing a longer-lasting and more aesthetically pleasing solution.
Yes, 3cm porcelain pavers are designed to withstand various climatic conditions. Their low water absorption rate makes them resistant to freeze-thaw cycles, preventing cracking in colder climates. They are also exceptionally fade resistant, making them suitable for both hot and cold environments.
Since 3cm thick porcelain pavers have almost three times the breaking strength of 2cm porcelain pavers, they can be sand/gravel set for most applications. For areas with regular vehicular traffic we would normally recommend using the 6” x 12” size pavers with lugs on the sides which provide consistent gapping of the pavers.
Porcelain pavers can certainly be laid over existing concrete, and generally even if the concrete cracked and worn. For resurfacing patios and similar exterior areas in residential applications, we would normally recommend using Archatrak 2cm pavers supported by fixed height rubber pads rather than 3cm outdoor pavers, since the extra cost of 3cm porcelain pavers would not normally be justified for this application.
