Adjustable Deck Pedestal Supports – ‘Prime’ Series

The most cost-effective adjustable deck support to specify, estimate and install in the height range 1 1/4″ to 16 1/2″.

The innovative design of Archatrak ‘Prime’ adjustable deck pedestals revolutionizes rooftop deck installation through its exceptional breadth of height adjustment utilizing just three models. While other adjustable decking pedestals often require numerous components to achieve working heights required, this streamlined solution using concentric screwed columns covers an impressive range from 1 1/4″ to 16 1/2″ with just three basic units. This consolidation dramatically simplifies inventory management on construction sites and eliminates the all too common contractor headaches associated with pre-installation pedestal height estimation and then having to deal with unexpected height variations on the actual site.

Broad Working Range

The PR1 model handles lower elevations from 1 1/4″ to 2 1/2”, which typically requires two sizes of adjustable deck levelers, addressing the crucial ground-level transition zone beyond the range of fixed height rubber pads. The exceptionally versatile PR2 model spans the mid-range from 2 1/2″ to 6″, which typically needs 2 or 3 sizes, covering the most commonly encountered requirement in elevated deck installations. The PR3 model extends all the way from 6″ to 16 1/2″, where a minimum of 3 sizes of deck levelers are normally required, greatly simplifying on-site inventory management.

Add-In Extenders Increase Working Height to 37”

For projects demanding greater heights, the PR3 model serves as the foundation for elevations beyond 16 ½” via add-in extension elements. A single extension increases working height to 24″, two extensions reach 30″, and three extensions extend to 37″, accommodating practically all elevated roof deck requirements.

Inbuilt Self Leveling Heads with Head Lock

‘Prime’ pedestals incorporate self-leveling heads as standard, automatically providing a perfectly level support for pavers where the substrate may slope in multiple directions up to 5°. This time saving feature eliminates the need for measuring slopes and then adding additional slope correction components either at the base or on the head of the pedestal. Need a fixed head? A simple add-in headlock component gives the option to switch to fixed heads for situations requiring extra rigidity.

Rubber Faced Heads with Inbuilt Spacer Tabs

Inbuilt rubber-faced pedestal heads provide superior acoustic dampening and slip resistance without the need for add-in shims. Integrated spacer tabs offer precise gap control between pavers, and can be easily snapped off when not required.

Versatile and High Load Bearing

The heavy duty ‘Prime’ pedestal system can be used with concrete pavers, porcelain pavers and structural Ipe wood tiles, making it an ideal solution for architects, contractors, and property owners seeking an exceptionally efficient and time saving elevated pedestal paving deck support system with high load bearing capacity for rooftop deck or balcony installations.

Request samples Inquire now

Key Benefits of Archatrak ‘Prime’ Adjustable Height Deck Supports

Only three pedestal supports cover heights from 1 1/4" to 16 1/2"

Screwed columns offer continuous incremental height adjustment

Self-leveling heads provide automatic slope compensation up to 5%

Wide 4 1/2″ diam. column ensures excellent stability of roof decks at high elevations

Large, 46 sq.in. circular base distributes load and avoids membrane damage

Scored base enables quick cuts to be made when laid in corners

Pre-cut base on one side speeds installation alongside walls

Anti-twist safety lock prevents over extension

Bi-material head provides superior sound deadening and shock protection

Top entry tool enables post installation height adjustments

Technical Details

Continuously adjustable from 1 1/4″ to 16 1/2″ with just three models.

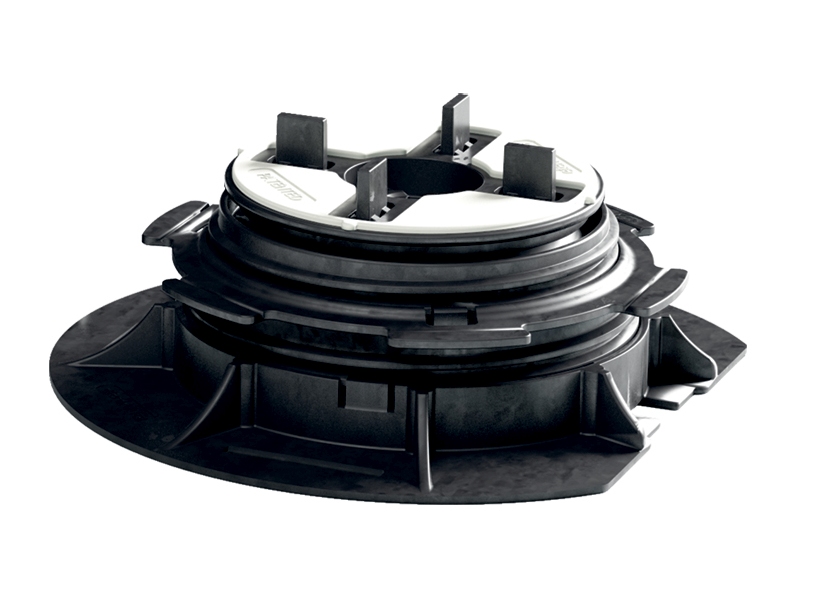

PR1    1 1/4″ – 2 1/2″

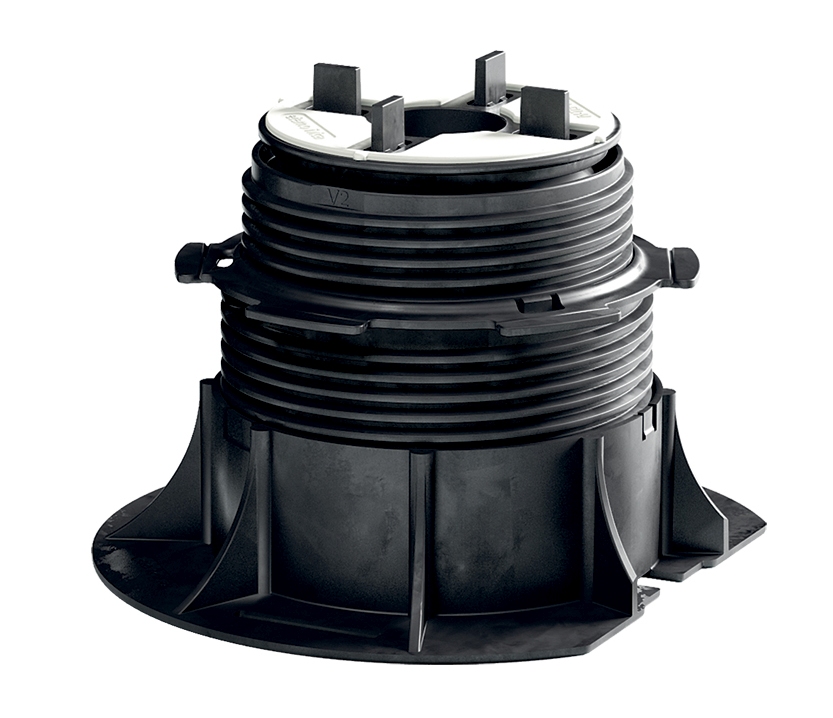

PR2    2 1/2″ – 6″

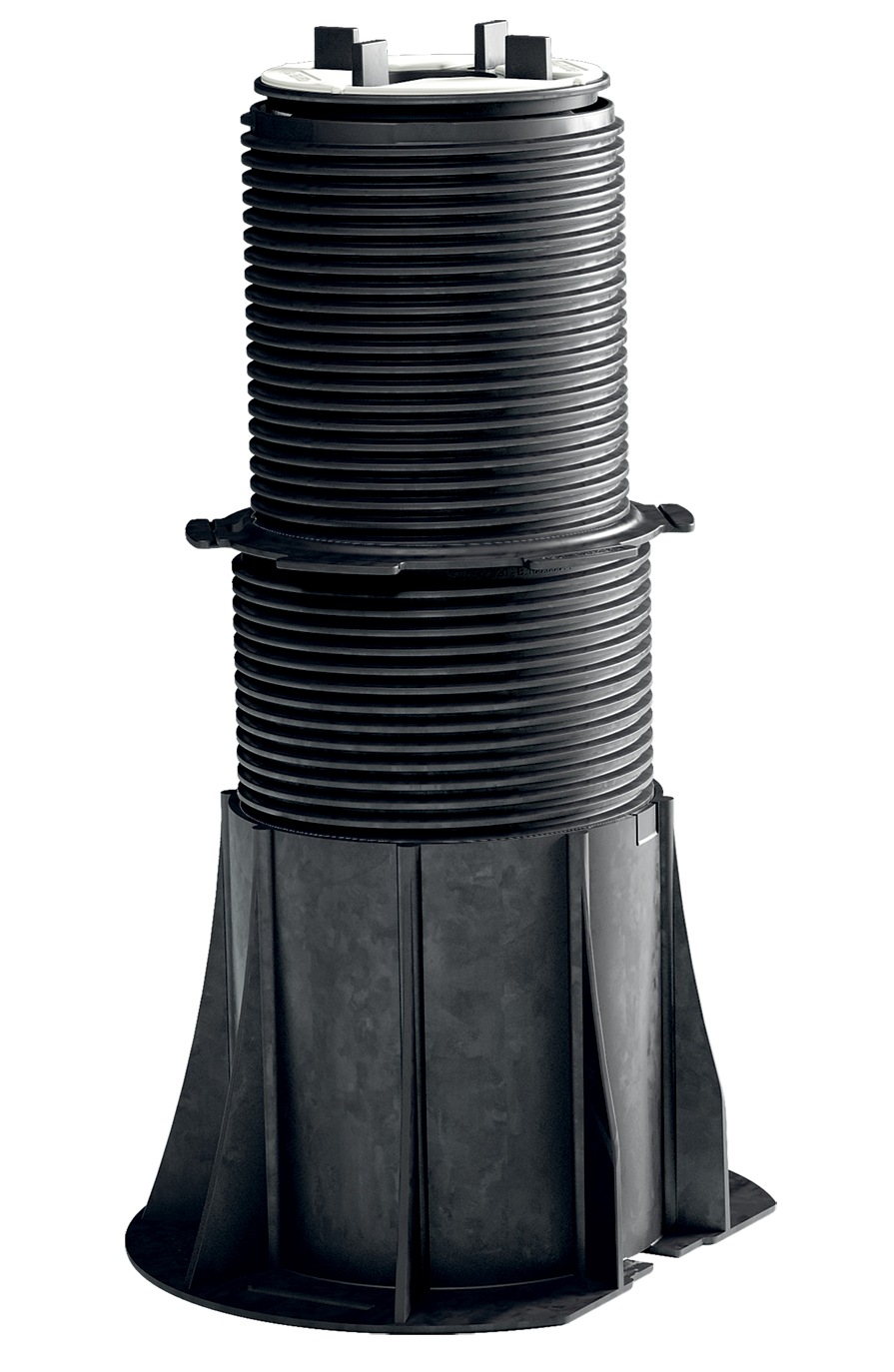

PR3    6″ – 16 1/2″

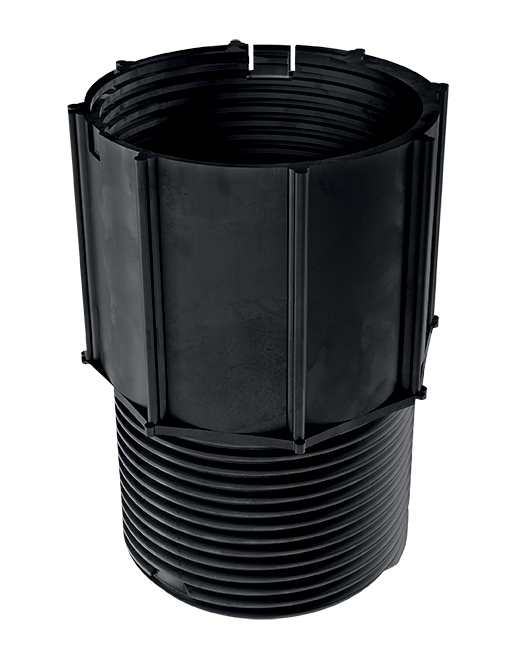

Extension elements 7 ½” tall can be added to the PR3 pedestals for higher elevations.

One extension – max height 24″
Two extensions – max height 30″
Three extensions – max height 37″

At high elevations, all column supports for high level decks should be stabilized with guy wires.

Installation guides for building elevated roof decks with a roof paver pedestal system using porcelain, wood or concrete pavers laid over Archatrak adjustable deck pedestal supports, can be seen at the link above together with a short video illustrating the various stages of installation.

Archatrak Inc. warrants that adjustable paver supports sold by us under the brand name ‘Prime’ will remain free from defects for a period of three (3) years from date of purchase.
