Adjustable Deck Supports – Archatrak ‘NM’ Series
With a wide central column and base, Archatrak ‘NM’ series adjustable deck supports offer higher load capacity and greater stability than supports with smaller diameter columns, especially when laying pavers at heights above approx. 16”. A single piece head with a rubber surface and inbuilt spacer tabs ensures superior noise reduction and slip resistance.

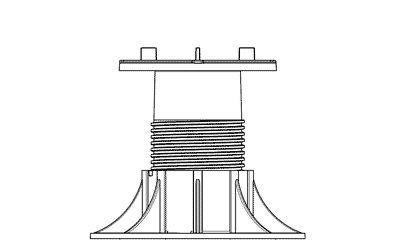

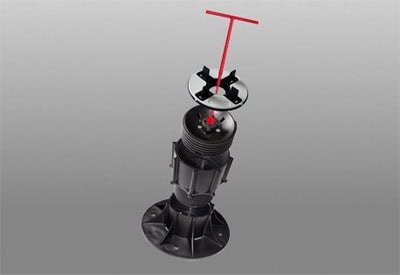

In contrast with our ‘SE’ series adjustable deck pedestals which feature a self-levelling head for slope adjustment, ‘NM’ pedestals are a lower cost, fixed head design which use add-in head mounted twist rings to provide variable slope compensation, each ring providing compensation up to 1%.
Five sizes of pedestals cover the range from 1” to 10 5/8”. Extension elements can be added to the NM5 pedestal to extend the workable height to over 39″.
A top entry height adjustment tool enables quick height adjustment even after the deck has been fully installed.
The wide 8″ dia. base has score marks to facilitate the removal of segments on the deck supports that are used around the perimeter wall of a deck which need to be positioned as close to the wall as possible.
Key Benefits of Archatrak ‘NM’ Series Adjustable Deck Support System
Extra high load bearing capacity
Only three main components – base, column, head
Wide 4 1/2″ diam. column and fixed head ensures excellent stability at high elevations
Build decks up to 39″ high with add-in extension elements
Inbuilt lugs on extension elements offer extra stability using guy wires
Screwed columns provide continuous incremental height adjustment
Bi-material head provides superior sound deadening and shock protection
Stackable twist rings provide slope adjustment from 1% to 4%
Top entry tool enables post installation height adjustments
Wide circular base distributes load and avoids membrane damage
Segments of base can be easily snapped off for perimeter installation
Five adjustable deck support sizes cover the height range from 1” to 10 5/8”.

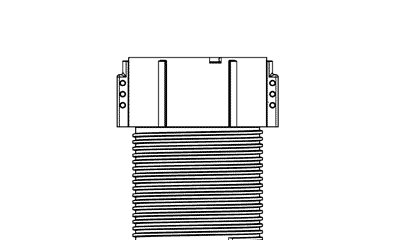

Extension rings 6 ½” tall are added to either the NM4 or NM5 deck supports to build up the height to 27 ¾” (NM5 pedestal + 3 Extensions).
At high elevations, pedestal supports should be stabilized with guy wires.

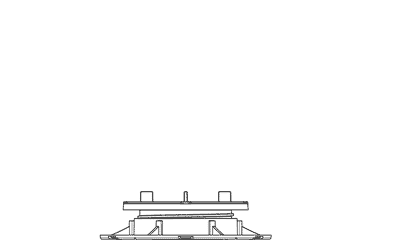

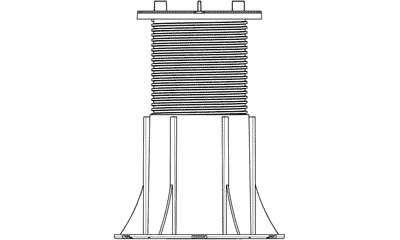

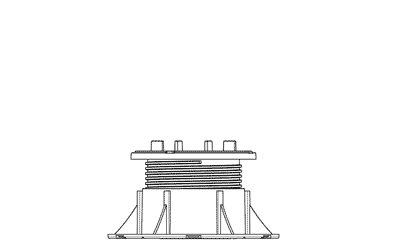

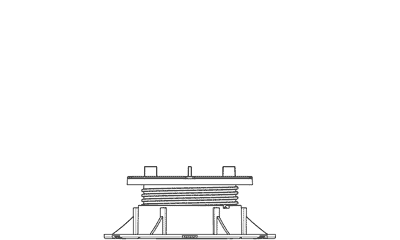

Side elevation drawings of MN1 to NM5 pedestal supports can be downloaded from here.

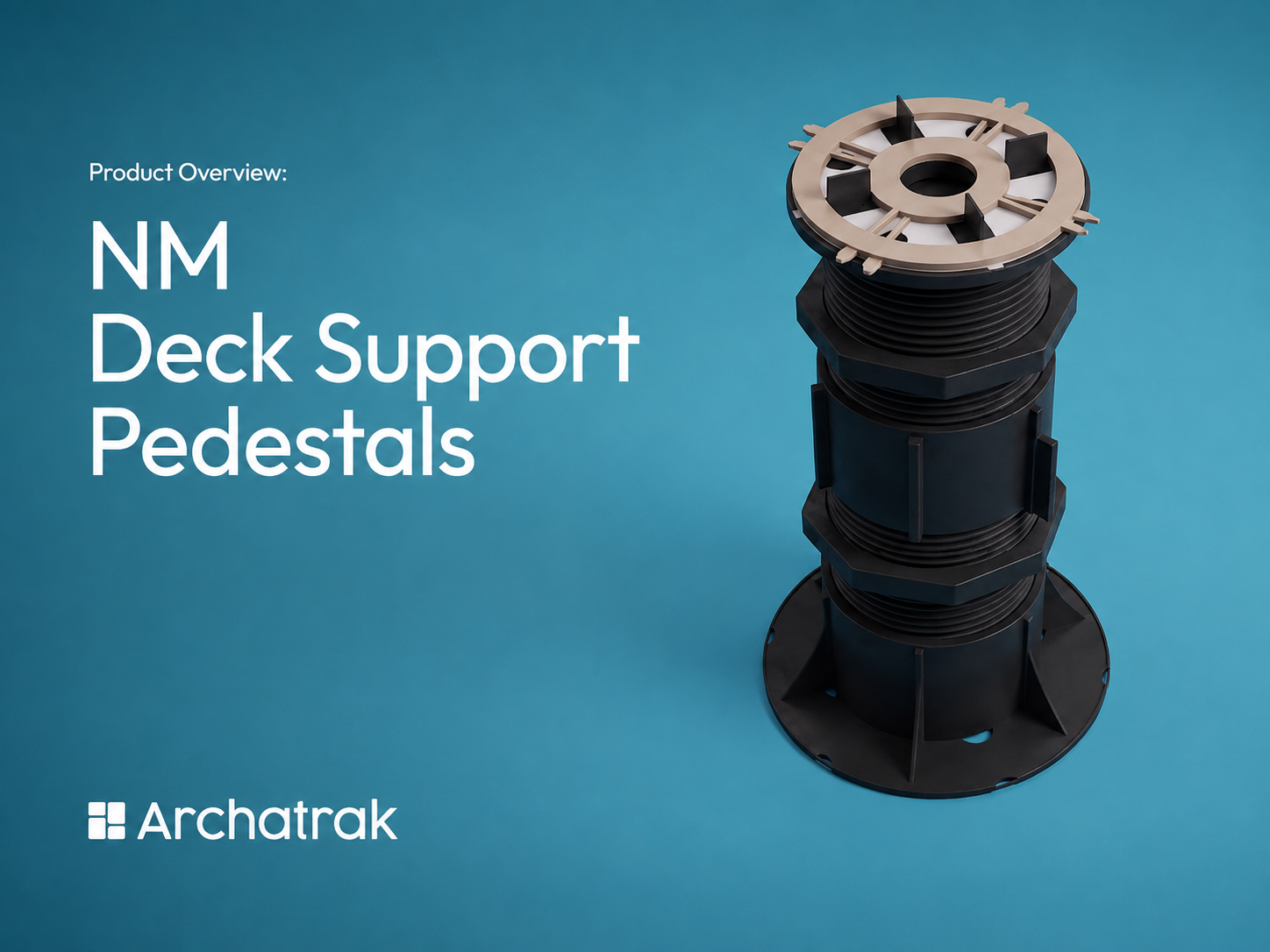

Installation guides for building elevated decks with porcelain, wood or concrete pavers laid over ‘NM’ series pedestals can be seen here together with a short video illustrating the various stages of installation.
Archatrak Inc. warrants that adjustable paver supports sold by us under the brand name “NM Series” will remain free from defects for a period of three (3) years from date of purchase.
Archatrak is proud to support both the UNHCR (United Nations High Commissioner for Refugees) in their efforts to assist the millions of people who have been forced to flee their home country and Médecins Sans Frontières who do incredible work in the field in more than 70 countries, providing medical humanitarian assistance to save lives and ease the suffering of people in crisis situations.
For every adjustable deck support sold, Archatrak is donating $0.15 to either UNHCR or Médecins Sans Frontières.
Downloads

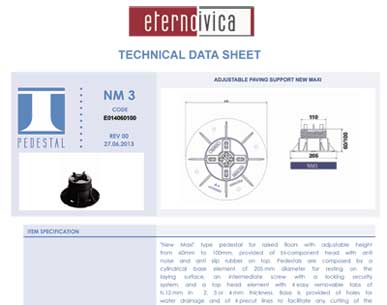

Archatrak 'NM' Pedestals - Data sheet
