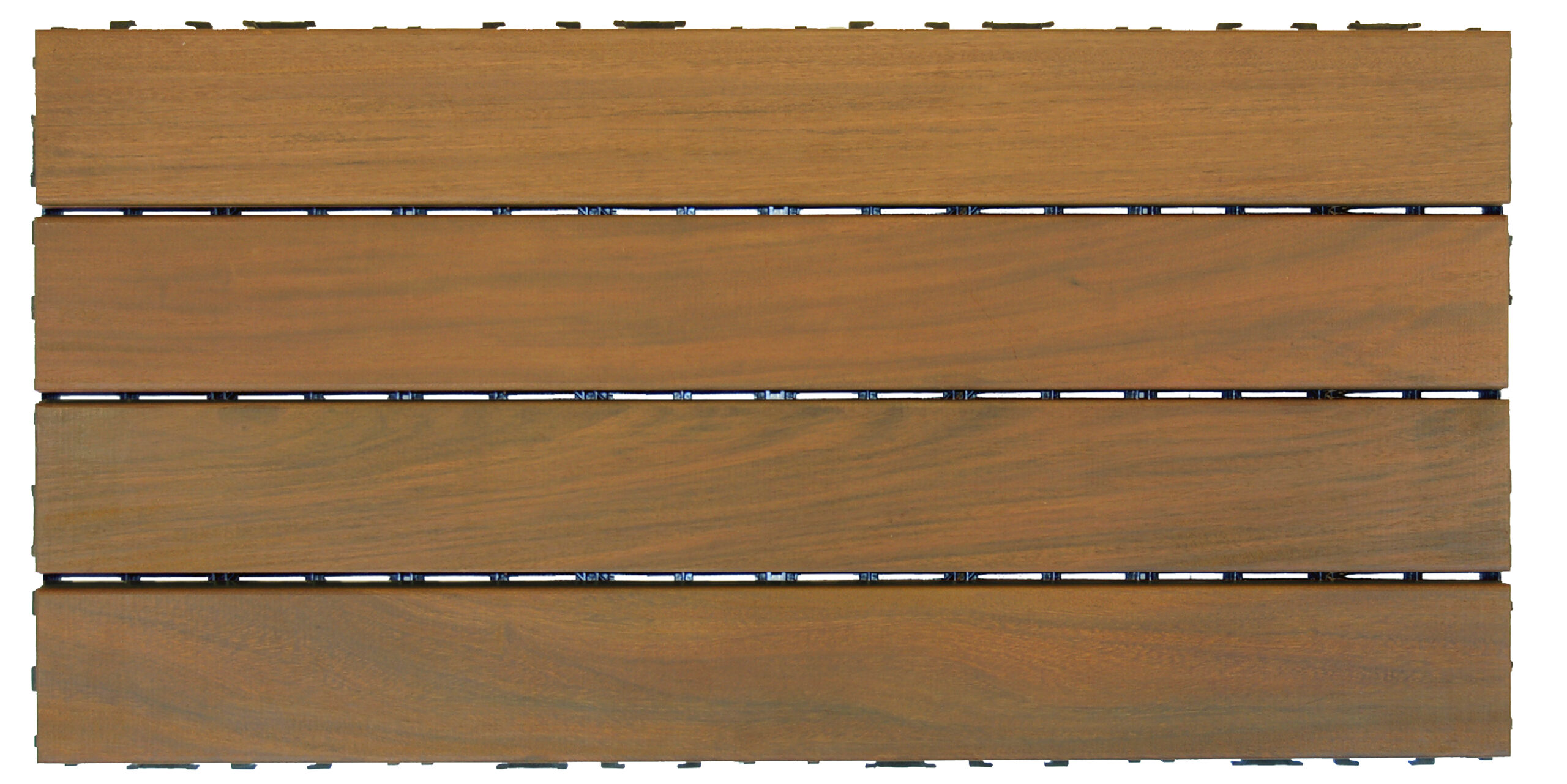

Interlocking Ipe Wood Deck Tiles
Archatrak ‘SwiftDeck’ Ipe wood interlocking deck tiles just snap together over any hard surface to create an instant outdoor floor you can enjoy year after year.

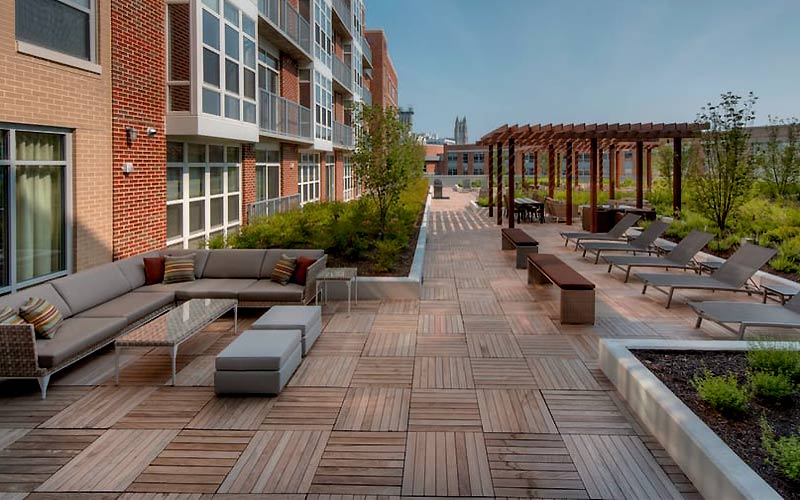

Use them to quickly and easily transform any patio, balcony, porch, rooftop or other outdoor hard surface. The integral, self-draining, plastic mesh base locks the tiles securely together and ensures water flows away freely under each tile.
Interlocking tabs on all four sides of these modular tiles ensure simple DIY installation with every tile automatically spaced and aligned accurately and precisely, all without frustration, mess or fuss. No specialist tools, no adhesives, no nails and no screws are required.
We exclusively use Ipe wood rather than softer, low cost, less durable wood species due to its excellent durability, hardness and smooth surface, even after years of full exposure to sun, rain and snow.
Please email us or call 866 206 8316 for pricing and ordering
Key Benefits
Exclusively using Ipe - one of the most durable and hardest wood species
Very stable in use - little tendency to twist, warp or cup
Excellent weathering properties – weathers to light grey color
Very resistant to attack by decay fungi and insects
Suitable for highly exposed and severe climatic conditions inc. snow and ice
Hard wearing and scratch resistant – suitable for commercial applications
Virtually splinter free - even after years of weathering

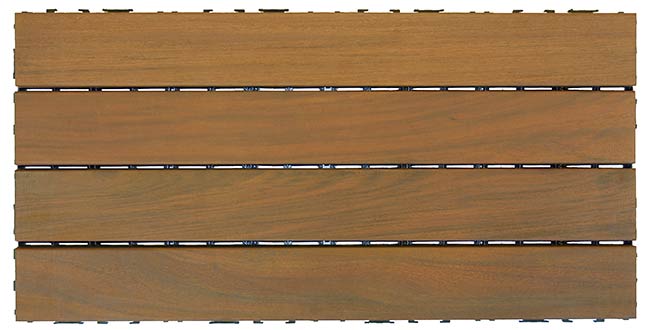

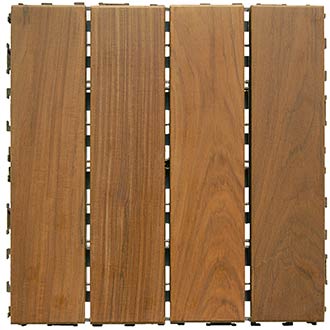

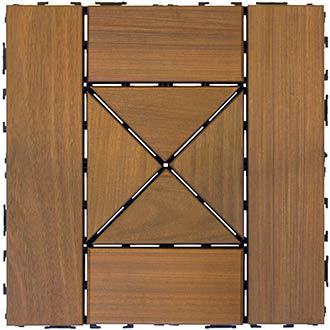

Tile size (covered area) 24″ x 12″
Tile Height (incl. base) 1 1/4″
Base Height 9/16″
Slat Thickness 11/16″
Tile Weight 6.8 lbs
Packing 6 tiles per ctn.
Carton Size 24 1/2″ x 13″ x 8″
Carton Weight 43 lbs

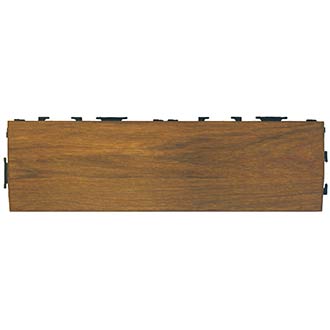

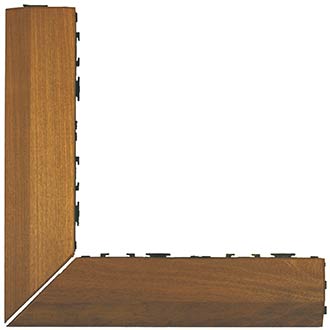

Clip to the edge of the outer row of tiles.
Provide a sloping transition to the sub surface.
Hide the side view of the plastic base.
Gap under front lip ensures water drains away freely.

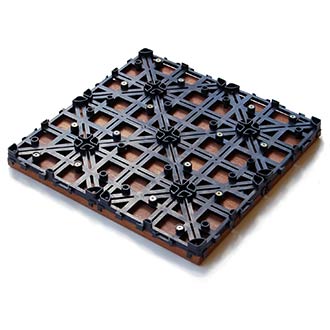

Symmetrical design enables easy installation and removal of any deck tiles UV stabilized polyethylene.
In-built interlocking tabs on all 4 sides.
Stainless steel screws attach base to wood slats.
Engineered to support over one ton of weight.
Workable temperature range of polyethylene: -100°F to 200°F (-73°C to 93°C).

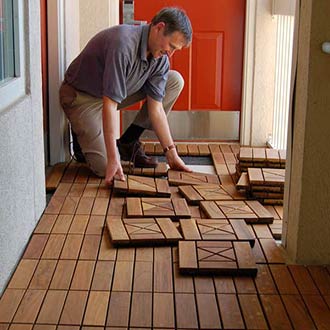

To install SwiftDeck Ipe wood deck tiles, you’ll just need a tape measure, sharp knife and Phillips head screwdriver.
If you need to cut the tiles to fit around pipes, posts or other fixed features you’ll also need a handsaw or power saw to cut the tiles.
See here for detailed installation guidelines.
Although our wood tiles are coated with a decking oil at the factory, this is a very simple decking oil which is basically designed to enhance the initial appearance. To reduce the rate at which the tiles will naturally fade in direct sunlight and to keep your deck in optimum condition, we strongly recommend you take the following maintenance actions:
As soon as convenient after installation, apply a good quality decking oil with a brush or roller. Decking oils with trans-oxide pigments or other UV absorbing or reflecting compounds and with a high solids content are preferred for longer term results and extended periods between applications of decking oils.
See here for further notes on caring for your SwiftDeck Ipe deck tiles
Archatrak Inc. warrants to the original residential purchaser that its Ipe wood interlocking deck tiles marketed and branded as SwiftDeck shall be free from material defects in workmanship and materials for the five years from the date of original purchase, under normal use and service conditions.
Download the full warranty here.
Downloads
Archatrak Interlocking Deck Tiles - CAD drawings
Filesize: 143155b
