‘Incendio’ Non-Combustible Steel Pedestals

Archatrak steel deck supports permit the construction of totally non-combustible elevated decks on rooftops or other locations where strict fire regulations are enforced.

With fire safety regulations becoming increasingly tough, particularly in urban areas, polypropylene paver supports are no longer a viable option in many locations. Often, they’re not permitted even with fire-retardant additives.

Archatrak has developed the innovative ‘Incendio’ steel pedestal system to address the specific issue of properly fire-rated pedestals. These steel deck supports offer exceptional fire resistance without compromising on cost, making them a practical and reliable alternative to traditional plastic supports.

‘Incendio’ pedestals are composed entirely of steel and meet all of the highest fire safety standards including meeting all criteria specified under ASTM E136, “Standard Test Method for Behaviour of Materials in a Vertical Tube Furnace at 750°C”. As fire-rated pedestals, they are the best option for elevated deck projects requiring totally non-combustible materials.

Key features of Archatrak’s ‘Incendio’ Non-Combustible Steel Pedestals

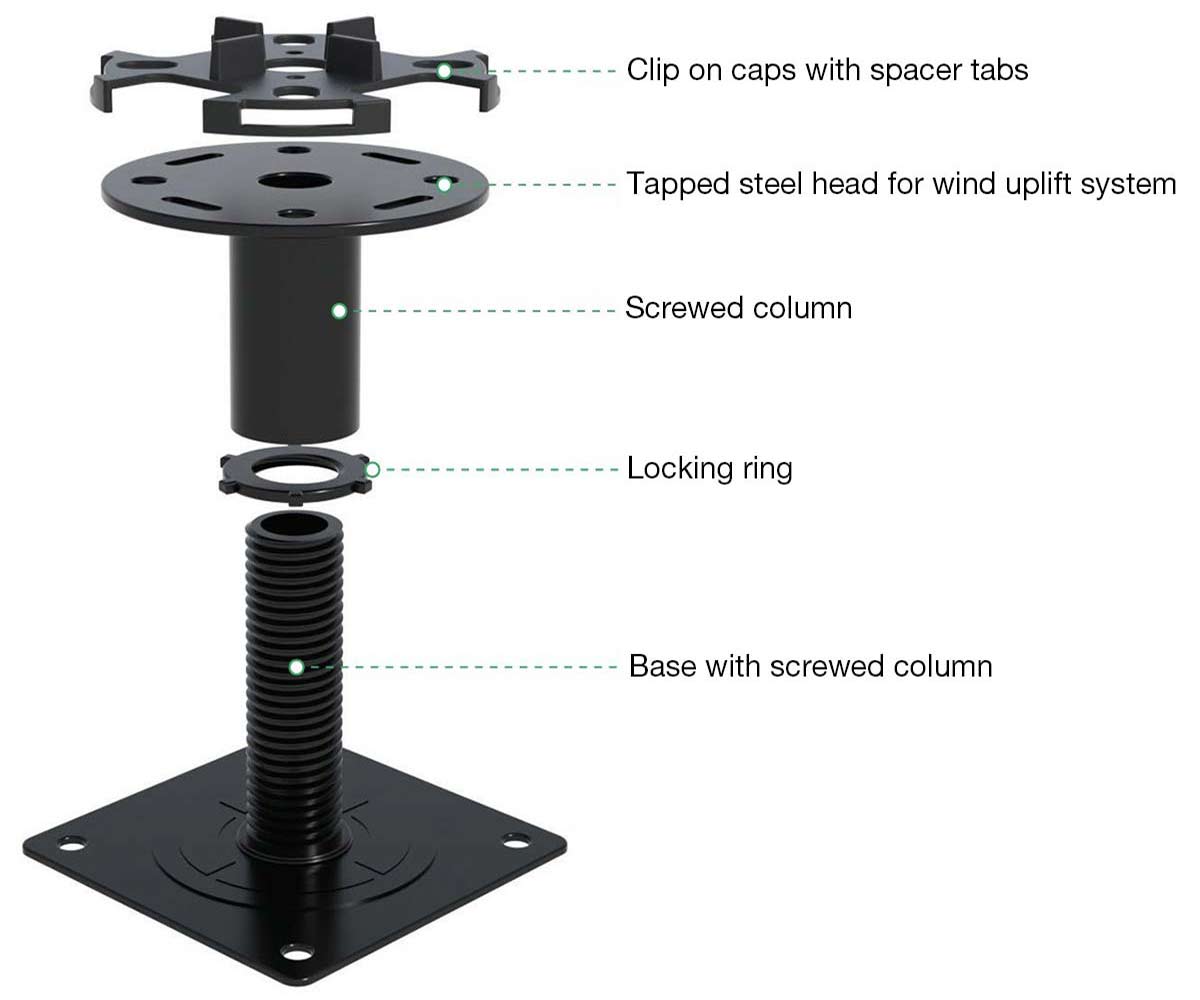

Non-combustibility: Constructed entirely of steel, these fire-rated pedestals will not catch fire, produce smoke or spread flames. They meet all of the highest fire safety standards including ASTM E136, “Standard Test Method for Behavior of Materials in a Vertical Tube Furnace at 750°C”. A fire-resistant polypropylene snap-on cap with paver spacer tabs is the only non-steel part of the pedestal system.

Fully Height Adjustable: ‘Incendio’ non-combustible pedestals offer continuous incremental height adjustment from as low as 1″ to a maximum of 19 1/4″. A locking ring on the screwed column prevents any movement and ensures excellent stability

Corrosion Resistance: An electrophoretic coating ensures long term durability of the steel pedestals, even in challenging environmental conditions.

High Load Bearing: Each steel pedestal can support loads exceeding 21,000 lbs. making them suitable for heavy-duty applications.







Request samples Inquire now

Key Benefits of Archatrak ‘Incendio’ Non-Combustible Paver Supports

Will not catch fire, create smoke, or spread flames
High load bearing - over 21,000lb
Will not crack, split or warp
Electrophoretic finish offers excellent corrosion resistance
Easy to install and adjust height
Externally threaded tube with locking ring for absolute stability
Cost effective - comparable in price with non-fireproof pedestals made of plastic

FAQ

How do “Incendio” steel pedestals compare to traditional plastic pedestals in terms of fire safety?

Traditional plastic pedestals, even those with fire-retardant additives claiming to be non-flammable supports, are inherently combustible and may not be in full compliance with fire regulations for elevated decks. In contrast, ‘Incendio’ fire-rated pedestals are made entirely of steel, rendering them non-combustible and in full compliance with fire regulations and rigorous local fire codes. This non-combustible nature makes them ideal for applications where fire safety is a paramount concern, such as rooftop decks in urban areas with stringent building codes.

What considerations should be taken into account when installting “Incendio” steel pedestals?

When installing ‘Incendio’ steel deck supports, it’s important to note that, unlike plastic pedestals, the steel base cannot be trimmed to fit closer to perimeter walls or parapets. Therefore, precise planning is essential to ensure proper placement. As with any adjustable height pedestals, setting them as level as possible before finalizing the installation will help achieve a level and stable decking surface. Although the 4” x 4” totally flat steel base distributes the load evenly over roofing membranes, an optional 9″ x 9″ buffer pad can be supplied for placement under the base of the steel deck supports if required.



Technical Details

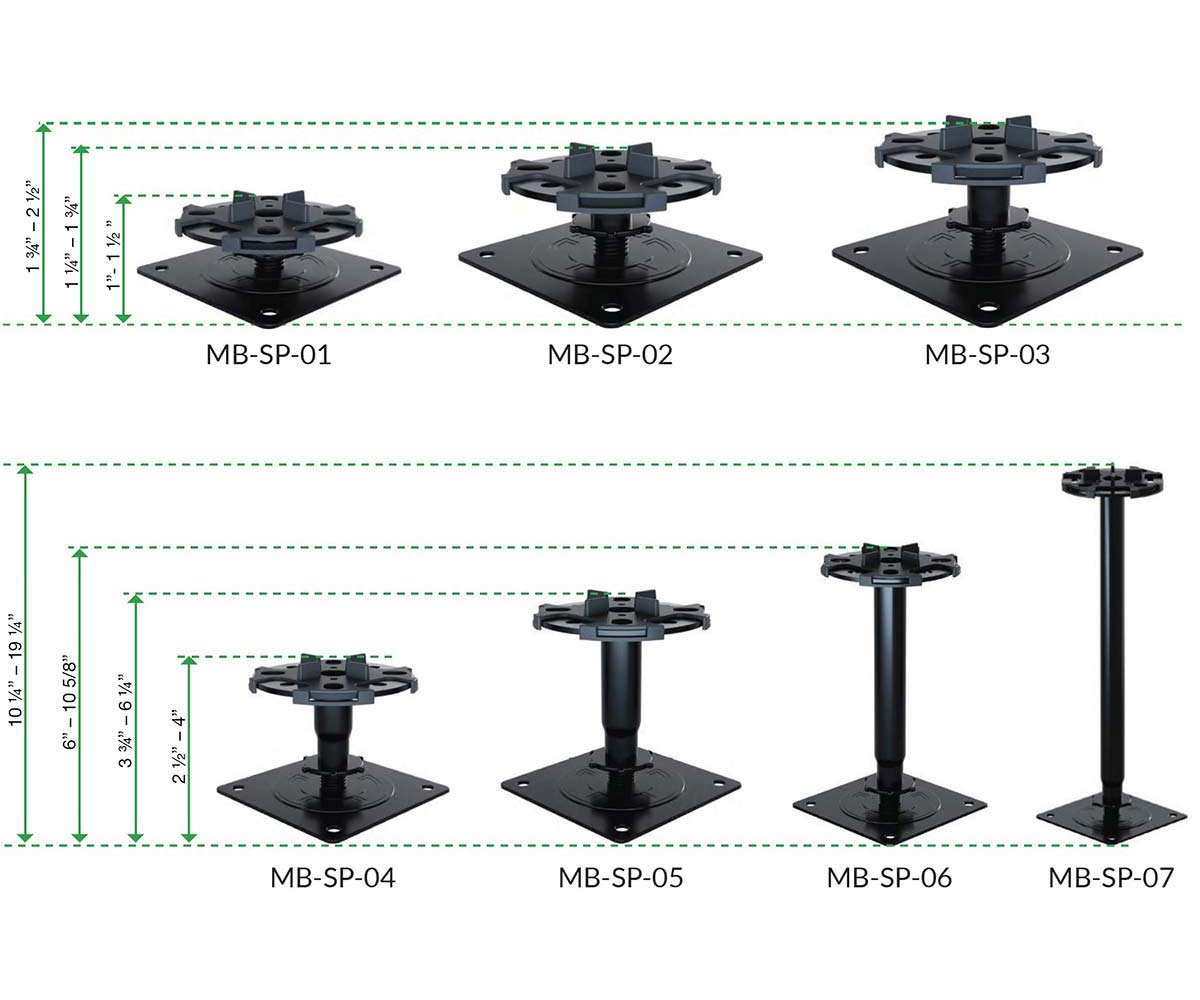

Continuously adjustable from 1″ to 19 1/4″.

INCEND-01   1″ – 1 1/4″
INCEND-02   1 1/4″ – 1 3/4″
INCEND-03   1 3/4″– 2 1/2″
INCEND-04   2 1/2″ – 4″
INCEND-05   3 3/4″ – 6 1/4″
INCEND-06   6 “– 10 5/8″
INCEND-07   10 1/4″ – 19 1/4″

Click to enlarge photos.

Material:         Mild steel
Finish:             Electrophoretic coating – anti-corrosion
Head diam.:  3 3⁄4” diameter
Base size:     4” x 4”
Loading:       21,000lb +
Head tabs:   1/2” high, 5mm or 3/16” thick
Fire rating:    Class A1/A2

Installation guides for building elevated decks with porcelain, wood or concrete pavers laid over Archatrak adjustable deck pedestal supports can be seen here together with a short video illustrating the various stages of installation.

The installation procedure with ‘Incendio’ rooftop steel pedestals is similar, with the notable exception that the base of the steel pedestals cannot be cut to bring the pedestals closer to any perimeter wall or parapet.

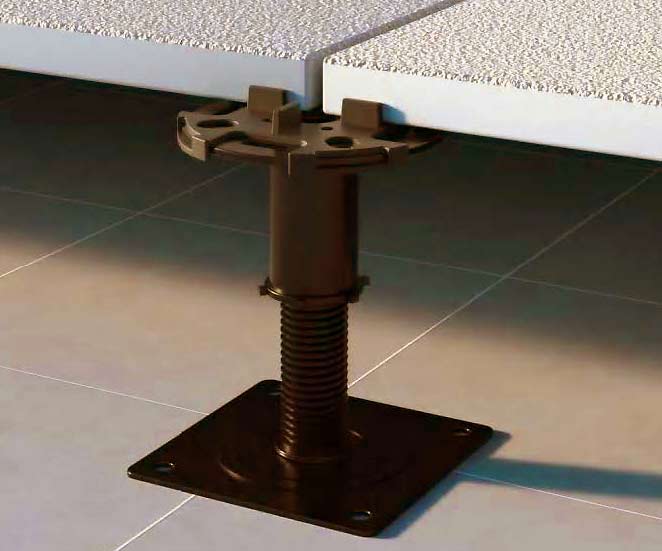

The tapped head of ‘Incendio’ steel pedestals enables them to provide a secure wind uplift system for both 2cm and 3cm porcelain pavers using a concealed lock down washer. This critical feature overcomes the issue with plastic pedestals where lock down screws can pull though the plastic head, leading to premature failure of the system, either in the short or longer term.

Archatrak is proud to support both the UNHCR (United Nations High Commissioner for Refugees) in their efforts to assist the millions of people who have been forced to flee their home country and Médecins Sans Frontières who do incredible work in the field in more than 70 countries, providing medical humanitarian assistance to save lives and ease the suffering of people in crisis situations.

For every adjustable deck support sold, Archatrak is donating $0.15 to either UNHCR or Médecins Sans Frontières.

Downloads

Incendio 3D Models Incendio 3D Models Filesize: 12642052b
