Perimeter Spacer Clips for Roof Decks

Deck to wall spacer clips reduce any sideways movement of porcelain pavers at a boundary wall or parapet and ensure a uniform gap is maintained between the outer edge of the paver and the wall.

The spring-loaded, stainless-steel spacers maintain a ¼”-3/8” gap between the paver edge and the wall allowing water to drain away freely. The steel clips are specifically designed for use with Archatrak ‘Prime’ or ‘NM’ pedestals.

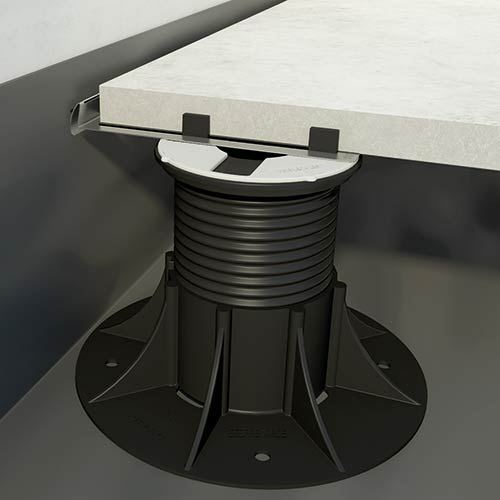

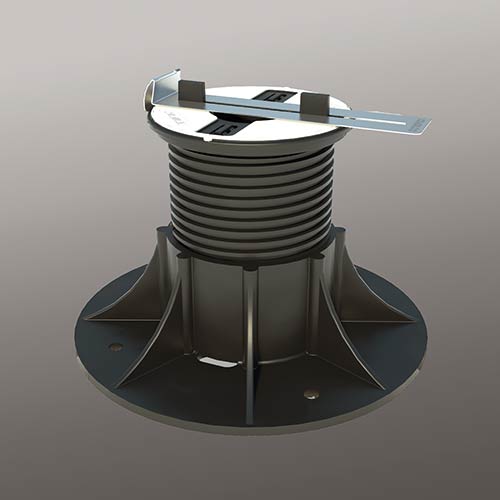

These spacers are simply placed over the tabs on the head of all pedestals laid around the perimeter of the elevated deck, prior to laying down the porcelain or concrete pavers. A central slot cut in the clips allows for the variable distance from which a pedestal fitted with the spacer may be positioned in relation to the perimeter wall.

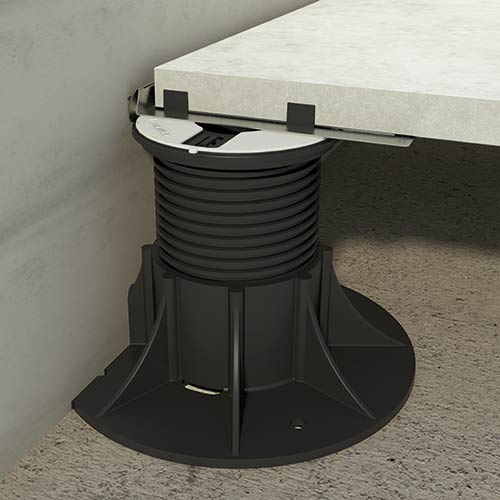

If using Archatrak ‘NM’ pedestals, the pedestal base may also be cut as shown below to position it closer to the wall, where necessary. Our ‘Prime’ pedestals already have one side pre-cut for faster installation.
